Description

Technical Parameters

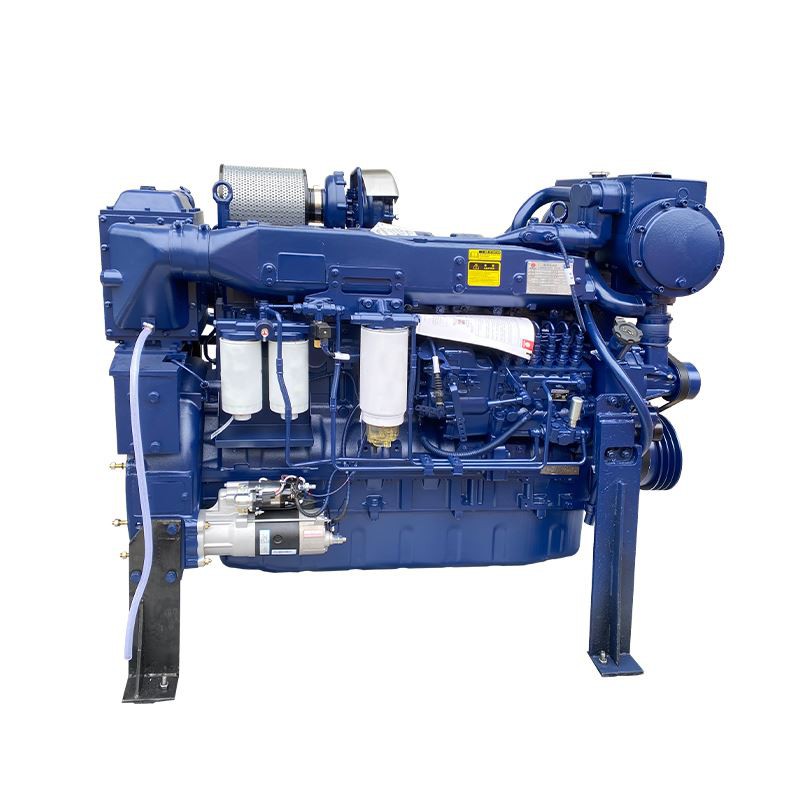

▼ A diesel powered engine uses compression ignition. It doesn't need an ignition system, so its structure is simpler and it has fewer points of failure.

Our engine has the characteristics of high efficiency and low fuel consumption. The engine's fuel injection system has high precision. It can accurately control the fuel injection quantity, injection timing and injection pressure. This ensures that the fuel burns fully in the cylinder.

Moreover, the core components of the diesel engine-such as the cylinder block, cylinder head, piston and crankshaft-are usually made of high-strength cast iron or alloy materials. Its overall structure is stronger. It can withstand continuous high-load operation for a long time.

ALTERNATOR DATA
Diesel Model	: WP13D385E200
Type	: In-line,4-Strokes,Water cooled,Turbocharged and Intercooled
Rated power	: 80KW/100KVA
No. of cylinders / valves	: 6/24
Speed	: 1500RPM
Bore/Stroke	: 127mm/165mm
Compression Ratio	: 17 ：1
Displacement	: 12.54L
Continuous Power	: 298 kW
Rated Power	: 350kW
Overload Power	: 385kw
Rated Speed	: 1500r/min
Idle Speed	: 600±50r/min
Bore/Stroke	: 127mm/165mm
Fire Sequence	: 1-5-3-6-2-4
Crankshaft RotatingDirection	: Counterclockwise facing flywheel
Starting method	: DC24V ElectricalStart
Governing control	: Electrical/Mechanical speedgovernor
Cooling mode	: Closed water cooled

Precautions for Operation in Cold Environments

(1) Fuel oil:

Choose diesel oil of different grades according to the different outdoor temperatures in winter.

(2) Lubricating oil:

Choose lubricating oil of different viscosities according to the season.

(3) Coolant:

Add coolant to the cooling system of the diesel powered engine. Choose coolants of different grades according to the different outdoor temperatures.

(4) Starting:

Auxiliary starters can be used when necessary in winter. After the diesel engine starts, you can only apply load and run it at high speed when the oil pressure and water temperature become normal.

(5) Battery:

Before the cold season starts, be sure to check the electrolyte level, viscosity and unit voltage of the battery. If the diesel engine is not used for a long time and is in an environment with very low temperature, remove the battery and store it in a warmer room.

Daily Maintenance of Diesel powered Engine

Regular maintenance is an important part of using a diesel engine properly. If you want the diesel engine to maintain a good technical condition and work reliably for you for a long time, please carry out maintenance in accordance with the standards.

During maintenance, pay special attention to the cleanliness of parts. When reinstalling the disassembled parts, you should clean them thoroughly and ensure correct installation. Then start the engine and check if it operates normally.
