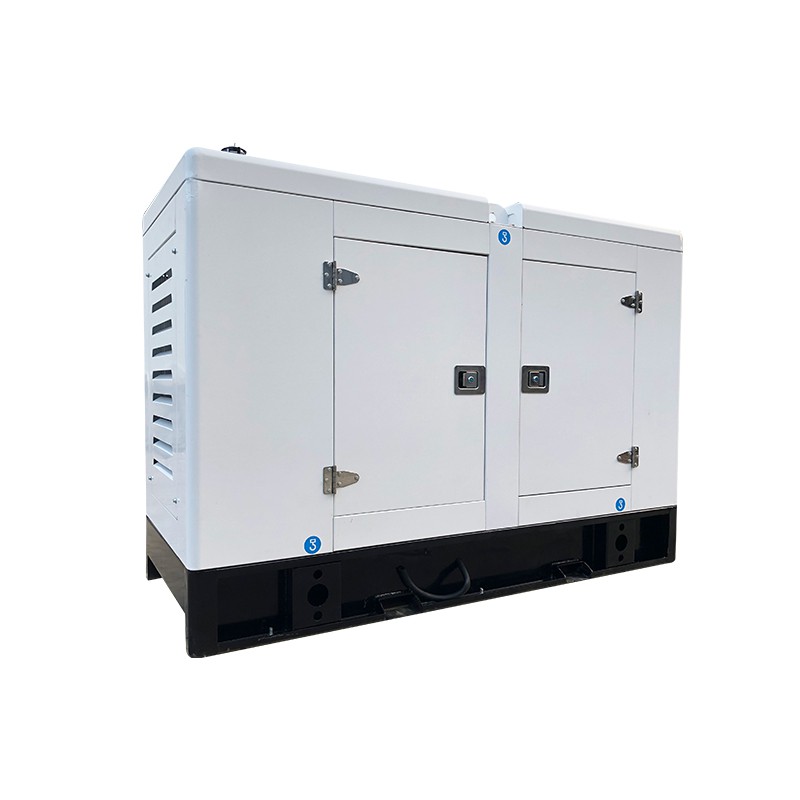

Our single phase diesel generator has low noise, is eco-friendly, and can stand high and low temperatures, water and dust. You can add a rain cover for outdoor use, and it works stably even in damp or dusty places.The Genset is trusted by different industries as a power solution.Besides the 18kva of Genset,we can also meet needs from small emergency power supply of 15KW to large continuous power supply of 1000KW, and all of them match exactly what's needed. The Diesel Generator helps protect production and activities in different fields.

Genset model	WPG-18
Prime Power	18kva	Rated Voltage	240V
Standby Power	20kva	Starting Method	Electric Start
Rated Frequency	50HZ	Rated Current	26A
Voltage Stabilization Time	≤1S	Frequency Recovery Time	≤5S
Voltage fluctuation rate	≤0.5%	Voltage fluctuation rate	≤0.5%
Number of phases	Single phase	Starting voltage	12V
Genset weight	650kg	Overall dimensions	19509601300
Fuel grade	0# normal temperature	Noise	LP7m：75db
Engine parameters

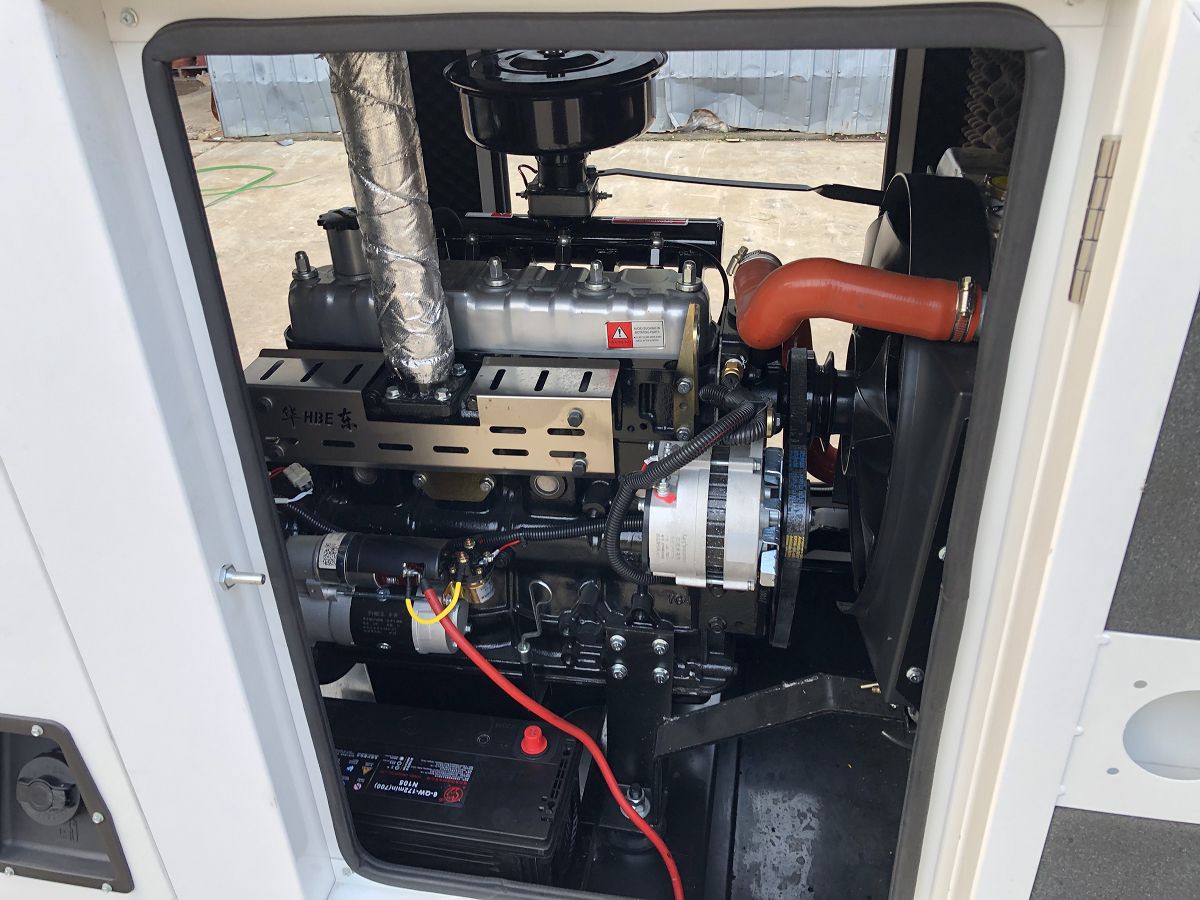

Diesel engine model	490D	Intake system	Natural aspiration
Diesel engine power	27kva	Exhaust emission standard	Non-road National II
Rated speed	1500r/min	Fuel specification and grade	National standard 0#
Fuel consumption rate	≤195g/kw.h	Oil model	WD/40
Bore * Stroke	90*100	Number of cylinders	4-cylinder/4-stroke
Displacement	2.544L	Compression ratio	18：1
Fuel supply mode	Direct injection	Cooling mode	Closed water cooling
Generator parameters

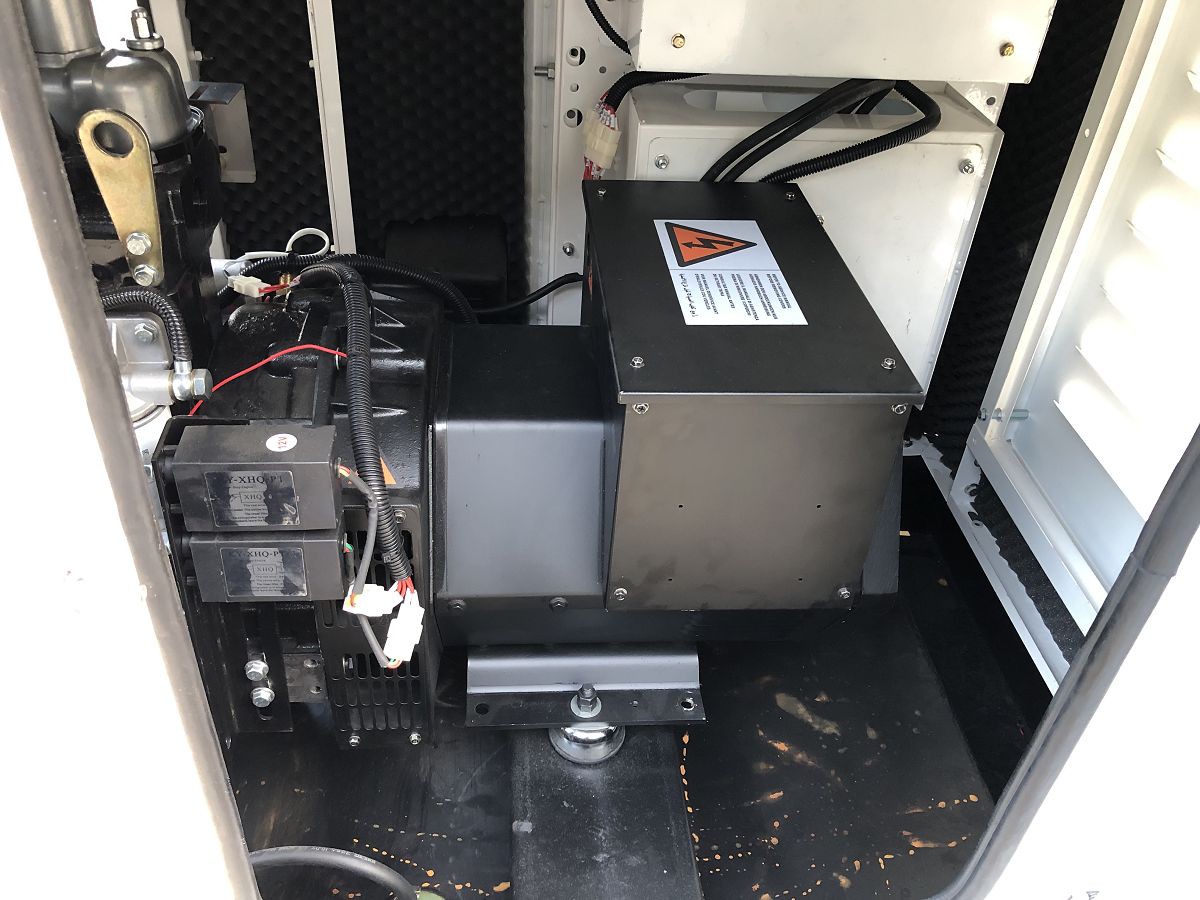

Rated power	18kva	Brand	Shenzhou
Protection class	IP22	Insulation and Temperature rise class	H/H
Model	SZN184-18	Excitation mode	AVR brushless self-excitation
Wiring method	Three-phase four-wire, Y-connection	Material	Pure copper

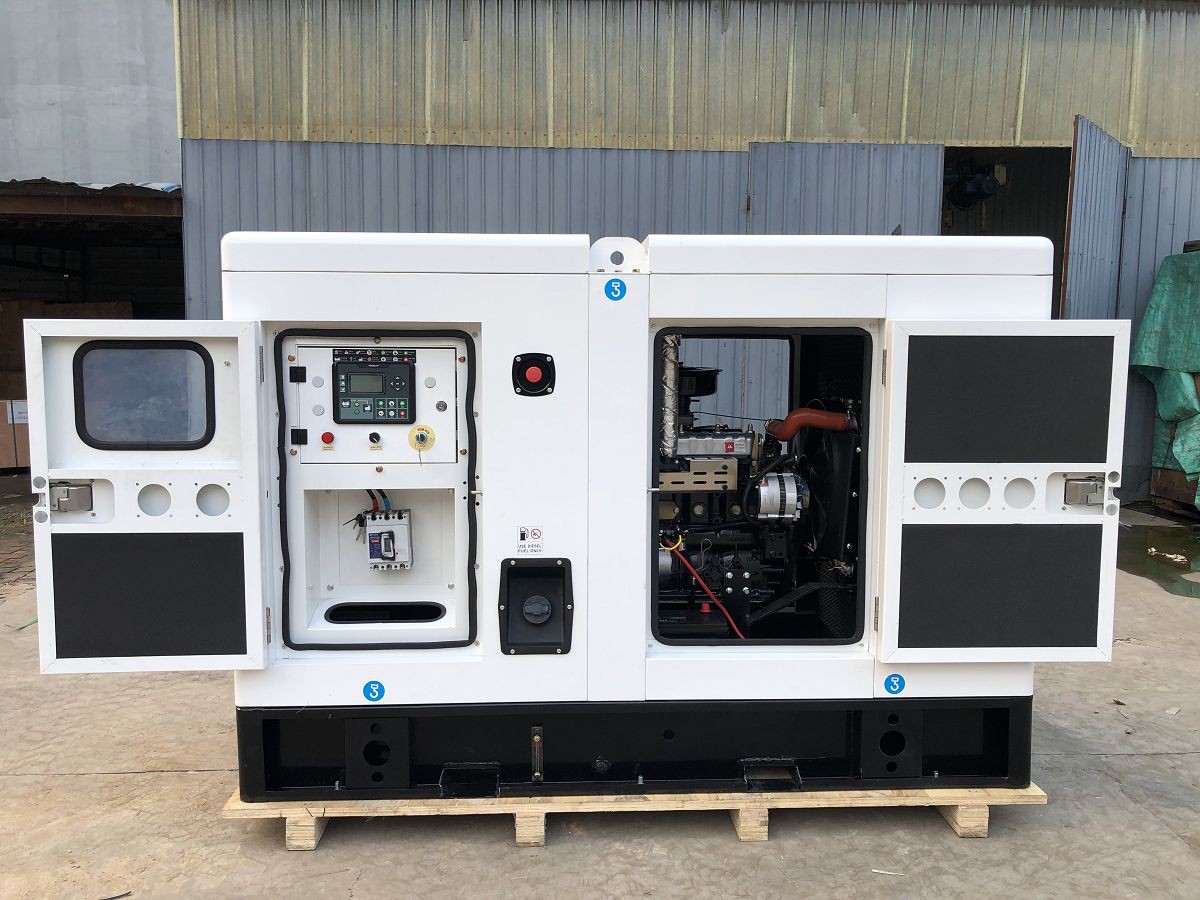

The cabinet of single phase diesel generator is treated with plastic spraying technology.The features are corrosion resistance and no rust. The material of sound-absorbing cotton used inside the silent cabinet is flame-retardant sound-absorbing cotton. The remarkable performance is low-noise , with the genset noise limit being 85dB(A) (at a distance of 7m from the genset), which conforms to national noise requirements.

The design of all-weather with rainproof, dustproof, frostproof and mute features. It is equipped with a reinforced chassis and cabinet framework. The cabinet and base are all undergone anti-corrosion and anti-rust treatment.It makes the Genset suitable for use in harsh environments.

The single phase diesel generator features a large-capacity chassis fuel tank design, which can accord with the fuel demand for the unit's 10-hour full-load operation. It installed a magnetic flap level gauge on the fuel tank at a suitable position for conservation, along with an analog fuel level sensor, allowing monitoring personnel to read the liquid level in a timely manner. The fuel filler is designed on the outside of the cabinet with a protective device.This design makes it convenient for adding fuel.
