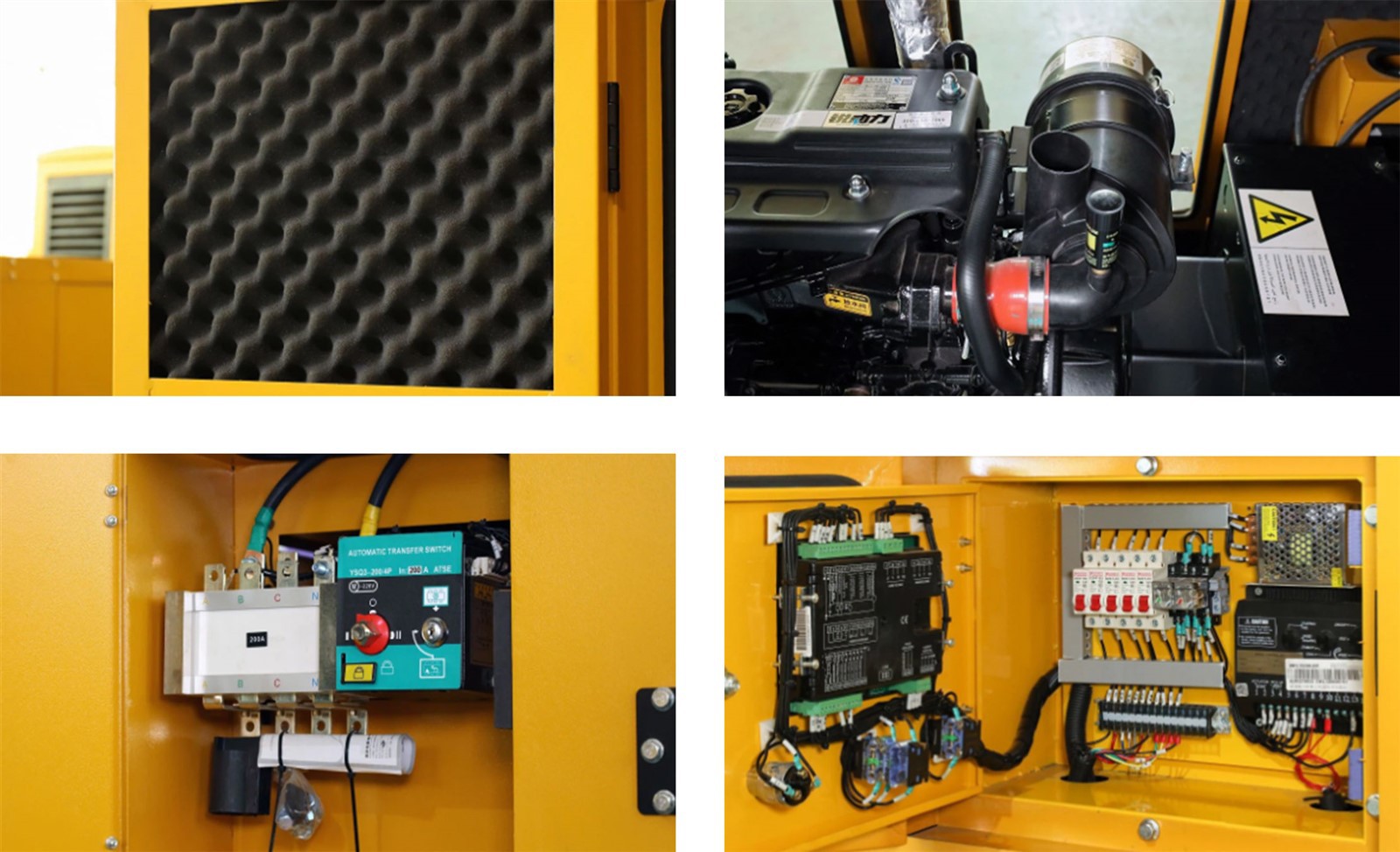

Andvantages of new silent generator: This is its most prominent feature. Noise control is Structural features: Integrated design for both protection and portability.

Fully enclosed/semi-enclosed casing of low noise generator: Most use fully enclosed steel casings with anti-rust treatment (such as plastic spraying, galvanizing) on the surface. It can effectively block rainwater, dust, and sand from entering the machine, preventing internal components (e.g., soundproof generator stator, diesel engine cylinder block) from getting damp or dusty, thus extending the equipment's service life (especially suitable for outdoor and open-air use).

Soundproof enclosures are designed with independent air ducts for "air intake - heat dissipation - air outlet" (e.g., air intake at the bottom, air outlet at the top). Some models are also equipped with forced cooling fans to ensure timely heat discharge when the silent diesel engine is running, avoiding power reduction or shutdown caused by high temperatures

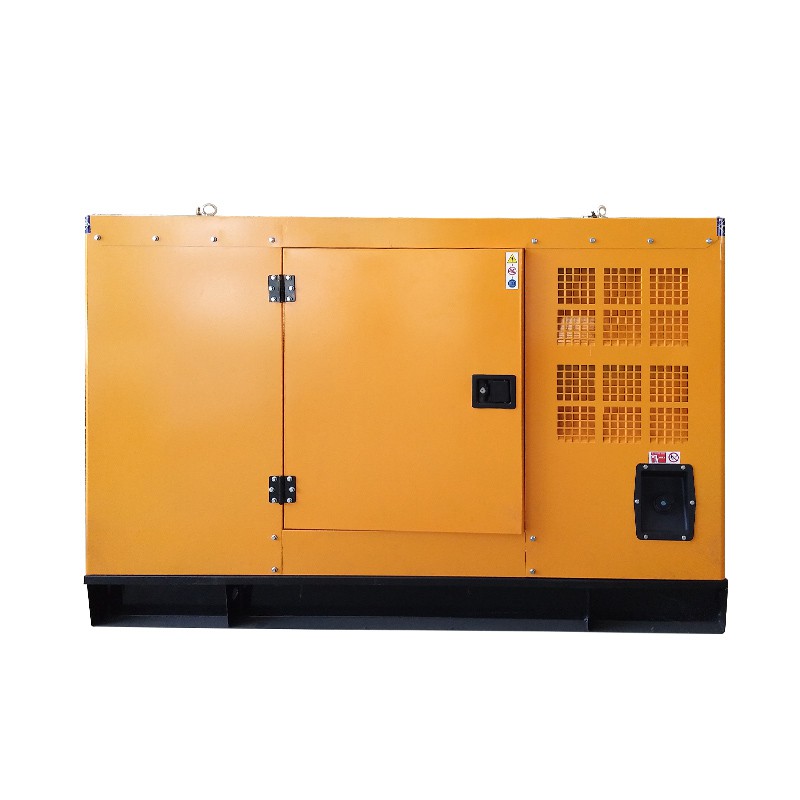

New Silent Generator

Specification of silence diesel generator:

Power Output	50kW/62.5kVA
Voltage Output	380V
Current Output	90A
Rated Frequency	50Hz
Rated Speed	1500rpm
Acoustic Noise(LP7m)：	95dB(A)
Engine Model	HD-50L
Displacement	/
Diesel engine rated power	56KW
Fuel Grade	(Standard)0#Light Diesel
Fuel Consumption(Full Load)	205g/kW·h
Cylinder	4/L Type
Bore and Stroke	105×125 mm
Compression Ratio	19.0:1
Starting System	DC24V Electric
Lube Capacity	/
Standby power	62KW
Governor Type:	machine control
Rated Power	50KW/62.5KVA
Power Factor	COSΦ=0.8(Lag)
Rated Voltage	380V
Insulation Class	H
Over Capacity	110%
Speed(RPM)	1500
Indicating of Protection	IP22
Wiring Mode	3Phase 4Wires Y Type
Governor	AVR(Automatic Voltage Regu

Today we received an inquiryof diesel generator with silence box from a mining area. The customer has no access to electricity at their location and therefore needs a diesel generator set, with the required voltage and frequency being 380V and 50Hz. This generator set will be used to power the submersible slag pump they purchased. The water pumped up from the mining area is sewage containing particles. Additionally, blasting operations are conducted in the mining area, so a cover is needed to prevent flying rocks from splashing and damaging the diesel engine. Moreover, the customer has a noise-free requirement, so we have directly equipped the diesel generator set with a soundproof enclosure. This configuration fully meets the customer's needs.
