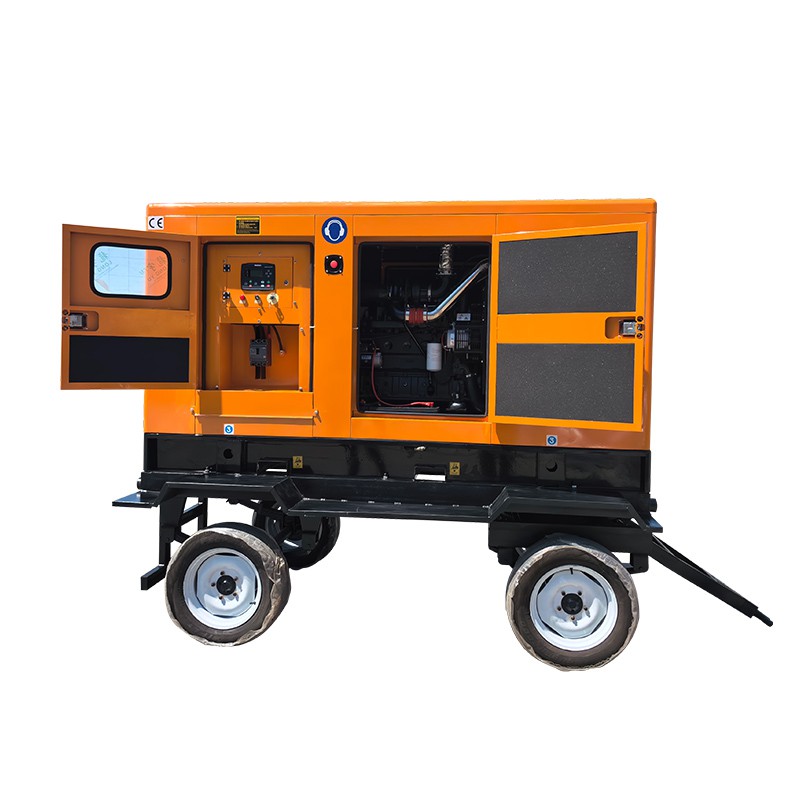

The mobile trailer generator set has an innovative design. It is highly mobile, with a low center of gravity, safe braking, fine manufacturing and an attractive appearance.It adopts a leaf spring suspension structure. The node selection is reasonable, with high strength and good rigidity.The power generator set station is easy to move and flexible to operate. It has good sealing performance and safety.The set is equipped with hand brake, air brake, rear tail light and other systems. It meets the road driving requirements.
The trailer genset is widely used in construction sites, highways, railway construction and temporary electricity use places.Mobile trailer generator sets include hand-pushed type, three-wheel type, four-wheel type, vehicle-mounted power station, trailer power station, mobile low-noise power station, mobile container power station, electric engineering vehicle and so on.
|
Model |
Rate Power |
Current(A) |
Engine Model |
Cylinder No. |
Bore+Stroke(mm) |
Displace ment(L) |
0il Capacity (L) |
Fuel consumption |
Open Type Size mm L*W*H |
Open Type |
|
|
kv |
kva |
||||||||||
|
BST-20GF |
20 |
25 |
36 |
WP2.3D25E200 |
4 |
90*100 |
2.54 |
11 |
205 |
450*700*1100 |
500 |
|
BST-24GF |
24 |
30 |
43 |
WP2.30D33E200 |
4 |
90*100 |
2.54 |
11 |
208 |
1600*760*1200 |
580 |
|
BST-30GF |
30 |
37.5 |
54 |
WP2.3D40E200 |
4 |
89+92 |
2.54 |
11 |
208 |
600*760*1200 |
580 |
|
BST-40GF |
40 |
50 |
72 |
WP2.3D48E200 |
4 |
90*100 |
2.54 |
11 |
205 |
600*760*1200 |
650 |
|
BST-50GF |
50 |
62.5 |
90 |
WP4.1D66E200 |
4 |
105*130 |
4.32 |
11 |
205 |
720*760*1250 |
830 |
|
BST-50GF |
50 |
62.5 |
90 |
WP4D6E200 |
4 |
05*130 |
4.5 |
0 |
198 |
1900*920*1350 |
0 |
|
BST-64GF |
64 |
80 |
108 |
WP4.1D80E200 |
4 |
105*130 |
4.32 |
10 |
205 |
750*760*1250 |
900 |
|
BST-75GF |
75 |
93.75 |
135 |
WP4D100E200 |
4 |
105*130 |
4.5 |
10 |
198 |
2100*920*1350 |
200 |
|
BST-80GF |
80 |
100 |
144 |
WP4D108E200 |
4 |
05*130 |
4.5 |
10 |
198 |
2100*920*1350 |
1250 |
|
BST-100GF |
100 |
125 |
80 |
WP6D132E200 |
6 |
105*130 |
6.75 |
18 |
198 |
2380+950*1450 |
1450 |
|
BST-120GF |
120 |
150 |
216 |
WP6D152E200 |
6 |
05*130 |
6.75 |
18 |
198 |
2450*950*1450 |
1550 |
|
BST-150GF |
150 |
187.5 |
270 |
WP6D167E200 |
6 |
05*130 |
6.75 |
18 |
190 |
2450+950*1550 |
1700 |
|
BST-160GF |
160 |
200 |
288 |
WP10D200200 |
6 |
126*130 |
9.726 |
23 |
210 |
2800*1150*1750 |
850 |
|
BST-200GF |
200 |
250 |
360 |
WP10D238E200 |
6 |
126*130 |
9.726 |
23 |
210 |
2900*1150*1750 |
2150 |
|
BST-220GF |
220 |
275 |
396 |
WP10D264E200 |
6 |
126*130 |
9.726 |
23 |
210 |
2950*1150*1750 |
2290 |
|
BST-250GF |
250 |
312.5 |
450 |
WP12D317E200 |
6 |
126*135 |
9.726 |
23 |
98 |
3000*1200*1850 |
2590 |
|
BST-300GF |
300 |
375 |
541 |
WP13D385E200 |
6 |
127*165 |
12.54 |
36 |
198 |
3050*1250*1850 |
2800 |
|
BST-320GF |
320 |
400 |
576 |
WP13D385E200 |
6 |
127*165 |
12.54 |
36 |
198 |
3050*1250*1850 |
2800 |
|
BST-350GF |
350 |
437.5 |
630 |
WP13D405E200 |
6 |
127*165 |
12.54 |
36 |
198 |
3150*1250*1850 |
3000 |
|
BST-360GF |
360 |
450 |
648 |
6M26D447E200 |
6 |
150*150 |
15.9 |
50 |
197 |
3750*1360*1930 |
3300 |
|
BST-400GF |
400 |
500 |
720 |
6M26D484E200 |
6 |
150*150 |
15.9 |
50 |
197 |
3750*1500*1850 |
3370 |
|
BST-450GF |
450 |
56.5 |
810 |
6M33D572E200 |
6 |
150*185 |
15.9 |
60.5 |
197 |
3750*1600*2050 |
3500 |
|
BST-500GF |
500 |
625 |
900 |
6M33D605E200 |
6 |
150*185 |
15.9 |
60.5 |
197 |
3800*1600*2050 |
3600 |
|
BST-650GF |
650 |
812.5 |
1170 |
12W26D792E200 |
12 |
50*150 |
31.8 |
13 |
197 |
4300*1990*2150 |
6900 |
|
BST-750GF |
750 |
937.5 |
1314 |
12W26D902E200 |
12 |
150*150 |
31.8 |
13 |
197 |
4300*1990*2300 |
7000 |
|
BST-800GF |
850 |
1062.5 |
440 |
12WM26D968E20024 |
12 |
50*150 |
31.8 |
113 |
197 |
4300*1990*2300 |
7150 |
|
BST-900GF |
900 |
1125 |
1620 |
12M33D1108E200 |
12 |
150*185 |
31.9 |
146 |
197 |
4600*2190*2400 |
8100 |
|
BS7-1000GE |
0 |
1250 |
1800 |
12M33D1210E200 |
12 |
50*185 |
31.9 |
146 |
197 |
4750*2190*2400 |
8250 |
Introduction to Trailers
The cabinet of trailer generator set is treated with spray coating technology. Its service life is 10 times that of ordinary cabinets. It adapts well to different environments.It is rainproof, moisture-proof and corrosion-resistant.The mobile generator set is suitable for factory and mining enterprises and other open-air situations or field operations as the main power source.
The tires are special wear-resistant tires for construction sites. They are anti-aging.
It is equipped with a large-capacity external fuel tank.
The mobile trailer generator set has an innovative design. It has high mobility, a low center of gravity, safe braking, excellent manufacturing quality and a nice appearance.
The trailer traction can rotate 360 degrees. It saves space and has good stability. It is suitable for tractors of various heights.It adopts a straight axle welded with round steel pipes. The structure of mobile generator set is compact, safe and reliable.The frame of the genset is welded into a frame structure with channel beams. The node selection is reasonable, with high strength and good rigidity. At the same time, it is equipped with a leaf spring suspension structure.The trailer uses a height-adjustable bolt-type traction frame and a straight axle welded with round steel pipes. The structure of the power system is compact, safe and reliable.There is a support wheel at the front end of the frame. It can not only bear the vertical load of the unit, but also has a guiding function.
