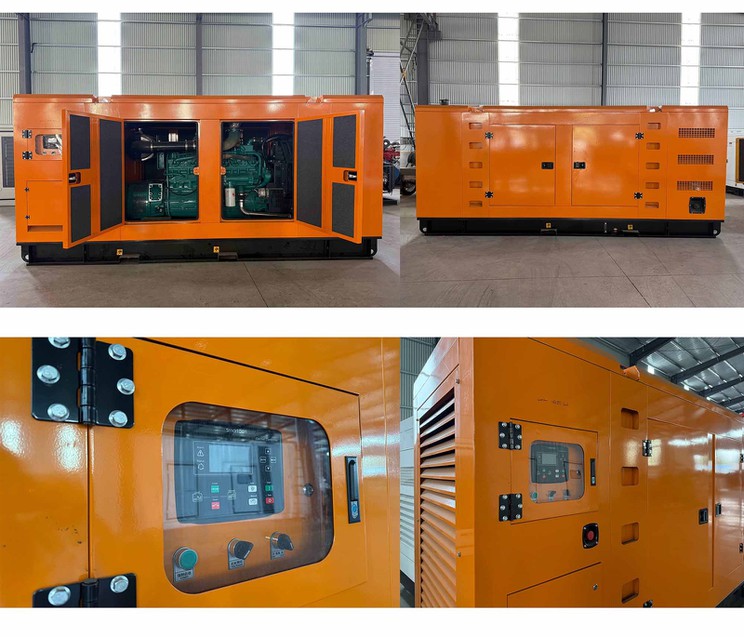

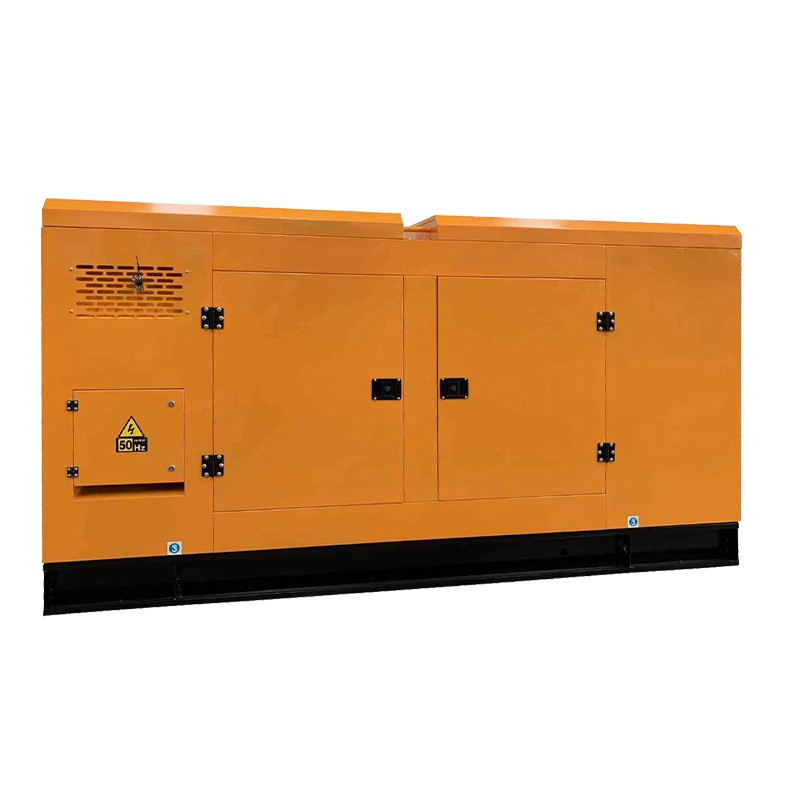

Generator sets play a key role in providing power in many fields. If you are looking for a water-cooled generator set, our product will be an excellent choice for you.
Our water-cooled generator sets have outstanding heat dissipation performance. They can meet the needs of high-load and long-cycle operations.Our water-cooled generator sets also has higher operational reliability. The heat dissipation effect of the coolant is less affected by fluctuations in the external ambient temperature. This helps keep the generator in a stable working condition and reduces failures caused by abnormal temperatures.
|
DIESEL GENERATOR DATA |
|
|
Generator set model |
TPD125CS6 |
|
Generator rated power |
100KW/125KVA |
|
Generator standby power |
110KW/137.5KVA |
|
Rated frequency |
60HZ |
|
Rated voltage |
440V |
|
Rated speed |
1800RPM |
|
Open type size |
3200×1130×1715 MM |
|
Open type weight |
1680 Kg |
|
ENGINE DATA |
|
|
Engine model |
6BT5.9-G2 |
|
Engine brand |
CUMMINS |
|
Engine rated power |
115KW |
|
Engine standby power |
127KW |
|
Engine speed |
1800RPM |
|
Bore & Stroke |
102 × 120 mm |
|
Displacement |
5.9 L |
|
Compression ratio |
17.3:1 |
|
Fuel consumption at 100% load |
22.3L/h |
|
Fuel system |
BYC A/Electronic Governor |
|
Type |
In line, 6 cylinder, 4 stroke |
|
Aspiration |
Turbo changer |
|
Governor |
Electrical |
|
Starting method |
Electric motor start |
|
Cooling method |
Water cooled by radiator |
|
ALTERNATOR DATA |
|
|
Alternator model |
QYI274DS |
|
Alternator brand |
FIRSTALL |
|
Rated power |
108KW |
|
Frequency |
60HZ |
|
Speed |
1800RPM |
|
Voltage |
440V-Green Power,Power with our heart!- |
|
Power factor |
0.8 (lagging) |
|
Phase and wire |
3 phase 4 wires |
|
Excite type |
Single Bearing, Close coupled. Brush-less, self-exciting,AVR |
|
Protection class |
IP23 |
|
Insulation class |
H |
The machine bodies of Generator Sets are more compact and saves space.
Air-cooled generators need to reserve large "air inlets and air outlets" for ventilation. So their machine bodies have to be made quite large. But the pipes of the water-cooled system can be arranged flexibly. They don't need much ventilation space. So the machine body can be made smaller.Places with narrow spaces, such as ship engine rooms and small generator rooms, are more convenient to install water-cooled generators. You don't need to specially make room for a large area.
The power output of Generator Sets is stable, which protects precision equipment.
Stable temperature allows the engine to run more smoothly. This in turn makes the fluctuations of the voltage and frequency output by the generator smaller. For example, when supplying power to factory machine tools and ship navigators. It won't damage equipment due to sudden high or low voltage. It is especially suitable for powering equipment that has high requirements for power stability.
