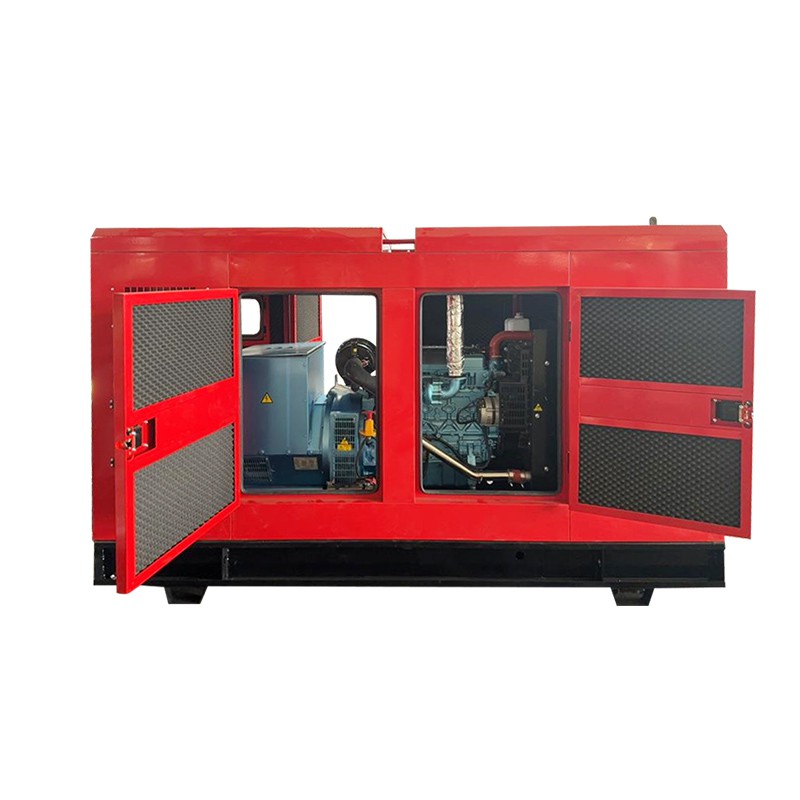

The box diesel generator set is equipped with a sound insulation cover.
It can not only greatly reduce the noise level.But also ensure that the enclosed equipment maintains efficient operation.Whether in residential scenarios, commercial places or industrial environments,the sound insulation cover plays an important role.If you want to choose a generator set that is efficient, has good performance and good noise reduction effect.Our generator set is definitely your ideal choice.
Applicable Scenarios of box diesel generator set
1.Residential Areas and Commercial Premises:
It is used for scenarios such as backup generators in residential communities and emergency power supplies in shopping malls.
If the diesel generator in a residential area runs directly, the noise will affect residents' lives.After installing a silent cover, the noise can be controlled below 55 decibels.This meets the night-time noise standard for residential areas and avoids disturbing residents.
2.Hospitals and Scientific Research Institutions:
Places like ICUs and laboratories in hospitals have very high requirements for environmental noise and cleanliness.The silent cover can not only reduce the generator noise to avoid affecting patients' rest and the operation of scientific research equipment.It can also block dust from entering the unit and reduce the risk of equipment failure.
3.Outdoor Temporary Work Scenarios:
This includes temporary generators used in scenarios such as municipal engineering construction, field exploration, and emergency rescue.The silent cover can protect the unit from the impact of rainwater and sediment.At the same time, it reduces the noise at the work site.This lessens the interference to surrounding residents or wild animals.

|
DIESEL GENERATOR DATA |
|
|
Generator set model |
TPD475CS6 |
|
Generator rated power |
380KW/475KVA |
|
Generator standby power |
418KW /522.5KVA |
|
Rated frequency |
60HZ |
|
Rated voltage |
440V |
|
Rated speed |
1800RPM |
|
Silent type size |
4600×1622×2515 MM |
|
Silent type weight |
5150 Kg |
|
ENGINE DATA |
|
|
Engine model |
QSZ13-G3 |
|
Engine brand |
CUMMINS |
|
Engine rated power |
450KW |
|
Engine standby power |
500KW |
|
Engine speed |
1800RPM |
|
Bore & Stroke |
130 × 163 mm |
|
Displacement |
13 L |
|
Compression ratio |
17:1 |
|
Fuel consumption at 100% load |
101L/h |
|
Fuel system |
HPCR |
|
Type |
In line, 6 cylinder, 4 stroke |
|
Aspiration |
Turbocharged & Charge Air Cooled |
|
Governor |
Electrical |
|
Starting method |
Electric motor start |
|
Cooling method |
Water cooled by radiator |
|
ALTERNATOR DATA |
|
|
Alternator model |
QYI314F |
|
Alternator brand |
FIRSTALL |
|
Rated power |
384KW |
|
Frequency |
60HZ |
|
Speed |
1800RPM |
|
Voltage |
440V-Green Power,Power with our heart!- |
|
Power factor |
0.8 (lagging) |
|
Phase and wire |
3 phase 4 wires |
|
Excite type |
Single Bearing, Close coupled. Brush-less, self-exciting,AVR |
|
Protection class |
IP23 |
|
Insulation class |
H |
- While the silent cover of box diesel generator set provides sound insulation.It is also equipped with an exclusive heat dissipation design.This prevents the generator set from overheating due to the enclosed environment.Through reasonable air duct layout, cooling fans or heat dissipation shutters, cold air can enter the cover.At the same time, hot air is discharged in a timely manner.This maintains the normal operating temperature of the unit during operation.
