Description

Technical Parameters

Our 750kva silent diesel generator with strong power output and high stability. They use relatively little fuel and start quickly. Also, there are many models for you to choose from. Besides, we can upgrade the emission system.The eco-friendly models of our diesel generator can meet the National III and National IV emission standards. Whether it's durability or safety, our diesel generators are an excellent choice.

Genset model	K4100D	4105ZD	6105ZD	6105AZLD	6105IZLD	HD6126ZLD	HD6126ZLD2	HD6126IZLD8	HD6126IZLD9
Type	Water - cooled,In - line,Four - stroke					Water - cooled,In - line,Four - stroke,Dry cylinder liner,Direct injection
Rated Power/Speed (kw/r/min)	30.1/1500 33/1800	56/1500 67/1800	84/1500 94/1800	110/1500 125/1800	132/1500 145/1800	205/1500	225/1500	275/1500	288/1500
Air Intake Method	Naturally Aspirated	Supercharged		Supercharged Intercooled
Number of Cylinders	4	4	6	6	6	6	6	6	6
Bore*Stroke (mm)	100*115	105*125	105*125	105*130	105*135	126*130	126*130	126*155	126*155
Compression Ratio	19：01	16:01						16:05:01	16:05:01
Exhaust Temperature (°C)	≤470	≤600	≤600	≤600	≤600	≤550	≤550	≤550	≤550
Firing Order	1-3-4-2		1-5-3-6-2-4
Fuel Consumption Rate (g/kw.h)	≤258.4	≤239	≤231	≤224	≤224	≤215	≤215	≤197	≤197
Displacement (L)	3.61	4.33	6.49	6.75	7.1	9.726	9.726	11.6	11.6
Cooling Method	Forced Water Cooling					Closed water cooling
Crankshaft Rotation Direction	Counterclockwise (Viewed from the Power Output End)					Counterclockwise
Lubrication Method	Pressure and Splash Combined Type					Pressure Lubrication
Starting Method	Electric Start
Net Mass (kg)	380	435	570	580	610	950	950	980	980

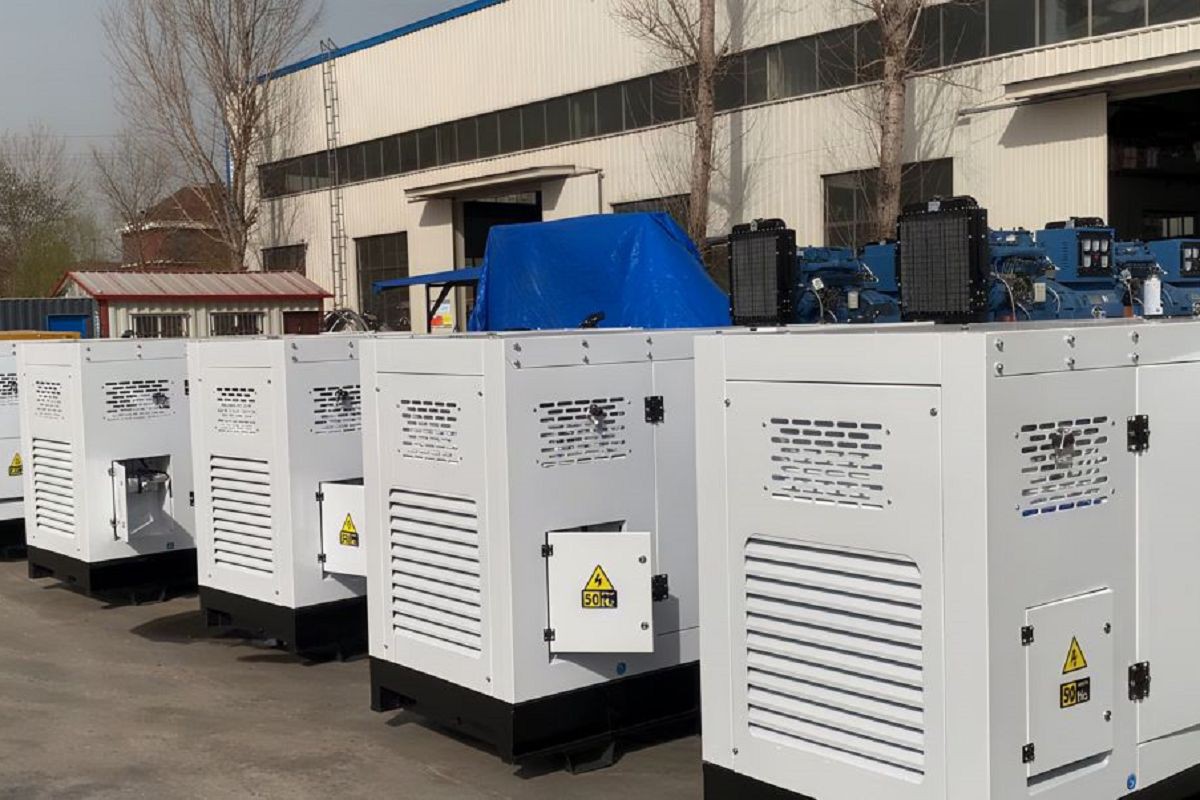

The cabinet of 750kva silent diesel generator is made by cutting and bending 2mm cold-rolled sheets. It has a strong overall structure.It looks very beautiful.Four lifting holes are installed on the top to make hoisting and moving easier.

Air intake silencer of the diesel generator is a labyrinth-type with three layers of sound-absorbing material. It not only lets in enough fresh air but also effectively blocks noise.

Air exhaust silencer of the diesel generator is a labyrinth-type with three layers of sound-absorbing material. It not only ensures smooth air exhaust but also effectively stops noise from spreading.

Power cables are connected using a fixed junction box structure, and the connection is done directly outside the cabinet.

Additionally, the structure of the silent cabinet door is similar to that of a sound insulation cover. The windows use double-layer glass, and the doors and windows are tightly sealed with the sound insulation cover to block noise as much as possible.

There is a fuel drain valve at the bottom of the cabinet of the diesel generator. It is convenient for changing lubricating oil and antifreeze. Users can directly drain the used lubricating oil and coolant out of the cabinet, which keeps the inside clean effectively.

The 750kva silent diesel generator can be used in many situations:

Industrial field:

In places like factories, mines and construction sites, they ensure production equipment runs continuously and prevent losses caused by power outages.

Commercial field:

In commercial places like hotels and shopping malls, they maintain normal business operations and customer experience.

Medical field:

As a reliable backup power source, diesel generators can save lives at critical moments.

......
