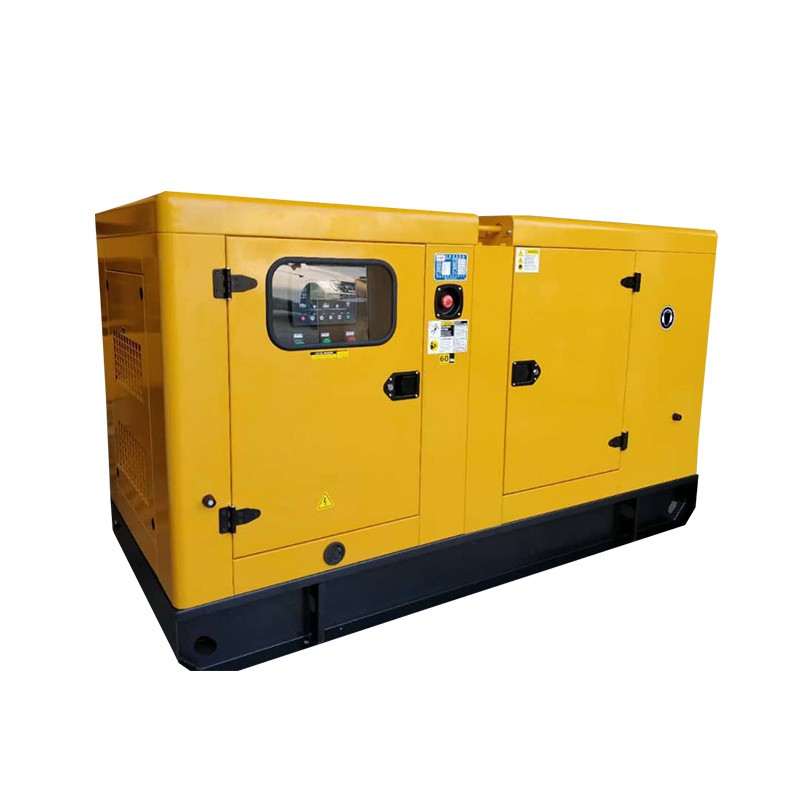

The soundproof cover for a 360kw soundless generator is a specially designed structure. Its main function is to enclose the equipment or machinery that produces noise. This helps block the spread of sound to the surrounding environment.The generator's soundproof cover can significantly reduce the intensity of noise. At the same time, it can also ensure that the enclosed equipment maintains efficient and stable operation.
Whether it is a residential area, a commercial space or an industrial site, the soundproof cover of diesel generator plays an important role. It helps balance three needs: the equipment working properly, the environment meeting comfort standards, and complying with local noise management regulations. In the end, it achieves a balance among these three aspects.
|
Technical parameters of genset |
|
|
Unit model: HCG360-W |
Steady-state voltage regulation (%): ≤±1 |
|
Output power: 360KW |
Voltage fluctuation rate (%): ≤±0.5 |
|
Power factor: COSΦ=0.8 (lagging) |
Transient voltage regulation rate (%): +20~-15 |
|
Output voltage: 380V/220V |
Voltage stabilization time (s): ≤1 |
|
Output current: 648A |
Steady-state frequency adjustment rate (%): ≤±1 |
|
Rated frequency: 50Hz |
Frequency fluctuation rate (%): ≤±0.5 |
|
Rated speed: 1500rpm |
Transient frequency adjustment rate (%): +10~-7 |
|
Fuel brand: (standard) 0# light diesel (normal temperature) |
Frequency stabilization time (S): ≤3 |
|
Dimensions:3200×1200×1500(L×W×H mm) |
Fuel consumption (100% load): 209g/kW·h |
|
Unit weight: 4200kg |
Noise (LP7m): 95dB (A) |
|
Diesel engine technical parameters |
|
|
Speed: 1500rpm |
Cooling method: closed water circulation cooling |
|
Diesel engine model: WP13D440E310 |
Diesel engine power: 440KW |
|
Cylinder number/lift structure: 6/L type |
Speed regulation mode: electronic speed regulation |
|
Cylinder stroke: 127×165mm |
Intake mode: turbocharged |
|
Compression ratio: 17:1 |
Overload capacity: 110% |
|
Starting method: DC24V electric start |
|
|
Generator technical parameters |
|
|
Output factor: COSΦ=0.8 (hysteresis) |
Protection level: IP23 |
|
Motor model: SWT534C-360 |
Wiring method: three-phase four-wire, Y-type connection |
|
Rated power: 360kW |
Regulation method: AVR (Automatic Voltage Regulator) |
|
Rated voltage: 380V/220V |
Output frequency: 50Hz |
|
Insulation grade: H |
|
The soundproof cabinet is specially designed based on the "power generation characteristics + noise characteristics" of Soundless generator：
