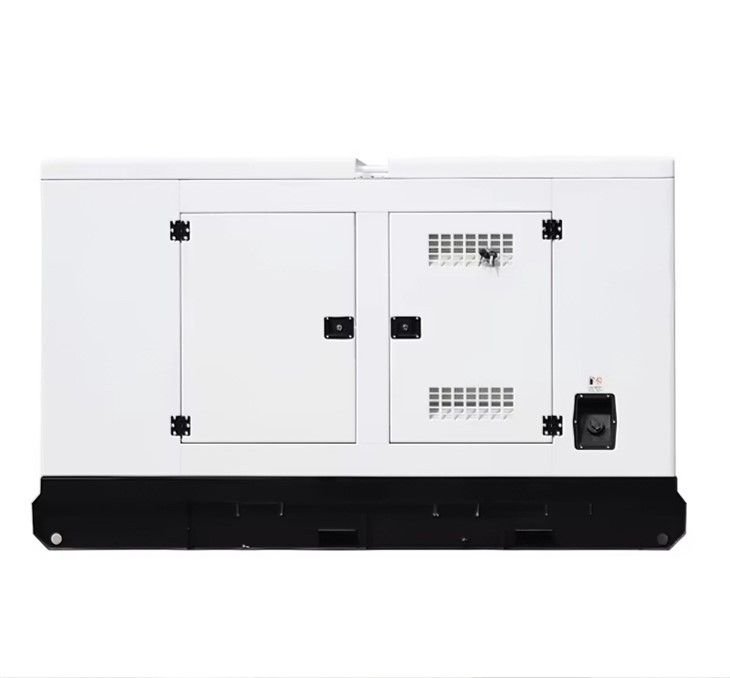

The silent generators can run continuously for 20 hours with a full tank of oil. The diesel power is strong and durable. With low noise of 60 decibels, it won't disturb the surrounding area.
The silent diesel generator can supply power to tower cranes, cold storage and temporary offices. It connects to electricity quickly and maintains stable power supply. This way, the construction schedule won't be delayed and the goods won't be damaged.
Prepare one for your construction site or warehouse, and all power problems will be gone!
|
Technical Specifications of Generator Set |
|
|
Generator Set Model |
HCG60-W |
|
Standby Capacity/Power kVA/kW |
88/70.4 |
|
Prime Capacity/Power kVA/kW |
80/64 |
|
Rated Voltage V |
400/230 |
|
Frequency Hz |
50 |
|
Power Factor |
0.8(lagging) |
|
Number of Phases |
3 |
|
Fuel Consumption Rate@25% / 50% / 75%(L/h) |
5.5/8.53/12.2 |
|
Fuel Consumption Rate@100% / 110%(L/h) |
16.7/18.2 |
|
Noise @1m(dB·(A)) |
Open type≤105;Close type≤85 |
|
Ambient Temperature(℃) |
-10～45 |
|
Performance Class of Generator Set |
ISO8528-5 G2 |
|
Steady-State Voltage Deviation |
≤±2.5%;≤±5% |
|
Engine Technical Specifications |
|
|
Engine Brand |
Weichai |
|
Engine Model |
WP4.1D80E200 |
|
Rated Rotational Speedr/min |
1500 |
|
Rated Power for Continuous Use kW |
72 |
|
Cooling Method |
Fan-type closed water cooling |
|
Speed Regulation Method |
Electronic speed regulation |
|
Air Intake Method |
Supercharged without intercooling |
|
Engine Type |
4-cylinder, in-line |
|
Bore * Stroke (mm) |
105x118 |
|
Displacement (L) |
4.087 |
|
Starting System |
24VDC |
|
Total Coolant Capacity(L) |
22.9 |
|
Lubricating Oil Capacity (L) |
13 |
|
Air Flow Rate of Cooling System(m³/min) |
190 |
|
Exhaust Gas Temperature (°C) |
≤570 |
|
Generator Technical Specifications |
|
|
Generator Model |
SWT274F-62 |
|
Excitation System |
Brushless Self-excitation |
|
Protection Class |
IP23 |
|
Voltage Adjustment Range |
≤±1% |
|
Insulation Class |
H |
|
Support Method |
Single Bearing |
The soundproof box of silent generators balances "sound insulation" and "heat dissipation" through a scientific ventilation and heat dissipation system:
1.Forced ventilation design:
A low-noise axial fan or centrifugal fan is installed inside the box. It works with the optimized air duct. The fan draws cold air from the outside into the box. The air flows through heat-generating components such as the engine, generator and radiator. Then it carries the heat and exits through a dedicated air outlet. This prevents heat accumulation.
2.Adaptation of heat dissipation components:
Some soundproof boxes of slience generators expose the generator set's radiator, inter-cooler to the side or top of the box. Others use combined "water cooling + air cooling" heat dissipation. These designs do not affect heat dissipation efficiency. They also do not damage the overall sound insulation effect.
3.Temperature and humidity control:
Some soundproof boxes of silent generators used in cold or humid environments have built-in heaters and dehumidifiers. These devices prevent internal parts of the box from malfunctioning due to freezing in low temperatures or rusting from moisture.
