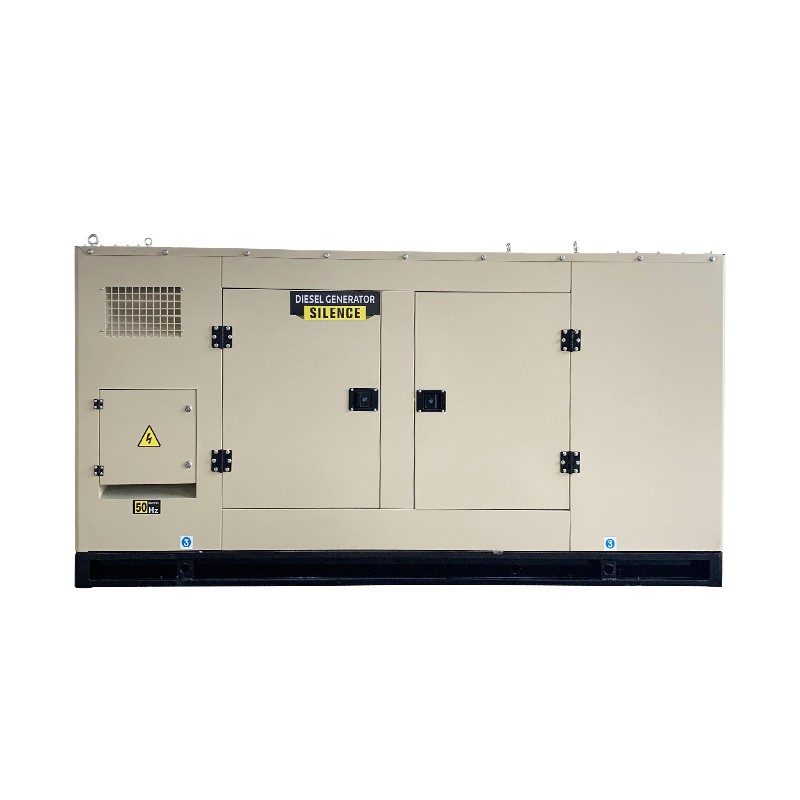

A quiet home generator is a noise-reducing generator designed specifically for daily household use. The generator is an integrated structure with efficient sound insulation, heat dissipation and protection functions. It can effectively reduce the noise produced by the engine during operation while ensuring the normal power generation of the generator set.In this way, it helps reduce noise pollution.
If you want to choose a diesel generator set for home use, our silent generator set is definitely an ideal choice for you. It can save you a lot of trouble during use.

|
Technical parameters of genset |
|
|
Unit model: HCG20-L |
Steady-state voltage regulation (%): ≤±1 |
|
Output power: 20KW |
Voltage fluctuation rate (%): ≤±0.5 |
|
Power factor: COSΦ=0.8 (lagging) |
Transient voltage regulation rate (%): +20~-15 |
|
Output voltage: 380V/220V |
Voltage stabilization time (s): ≤1 |
|
Output current: 36A |
Steady-state frequency adjustment rate (%): ≤±1 |
|
Rated frequency: 50Hz |
Frequency fluctuation rate (%): ≤±0.5 |
|
Rated speed: 1500rpm |
Transient frequency adjustment rate (%): +10~-7 |
|
Fuel brand: (standard) 0# light diesel (normal temperature) |
Frequency stabilization time (S): ≤3 |
|
Dimensions:100×115 mm |
Fuel consumption (100% load): 209g/kW·h |
|
Unit weight: 700kg |
Noise (LP7m): 70dB (A) |
|
Diesel engine technical parameters |
|
|
Speed: 1500rpm |
Cooling method: closed water circulation cooling |
|
Diesel engine model: ZH4100D |
Diesel engine power: 30KW |
|
Cylinder number/lift structure: 4/L type |
Speed regulation mode: electronic speed regulation |
|
Cylinder stroke: 100×115 mm |
Intake mode: turbocharged |
|
Compression ratio: 19:1 |
Overload capacity: 110% |
|
Starting method: DC24V electric start |
|
|
Generator technical parameters |
|
|
Output factor: COSΦ=0.8 (hysteresis) |
Protection level: IP23 |
|
Motor model: SWT224C-36 |
Wiring method: three-phase four-wire, Y-type connection |
|
Rated power: 36kW |
Regulation method: AVR (Automatic Voltage Regulator) |
|
Rated voltage: 400V/230V |
Output frequency: 50Hz |
|
Insulation grade: H |
|
▼Home generator sets are not "mini versions" of industrial-grade equipment. They are custom-designed to fully fit household scenarios.
Our quiet home generator is equipped with a control panel. It has one-button start and stop, and the fuel level/power display is clear. You can use it without professional skills.Mid-to-high-end fixed models also support the "automatic switch" function. When the power grid is cut off, the generators can start automatically and supply power within 10-30 seconds. When the power grid is restored, it will shut down automatically. This is suitable for families with the elderly, children or families who need to be away for a long time.
For household devices like computers, routers, and fish tank air pumps, a high-quality quiet home generator can output electricity with stable voltage and small fluctuations. This prevents device damage caused by voltage surges when power suddenly comes back on after a blackout.At the same time, it can also avoid hidden losses. For example, it stops computer data loss and the death of creatures in the fish tank that would happen due to a power outage.
The essence of a home generator set is a "backup solution for home electricity safety". Its features are designed around "household scenarios" to ensure flexibility and ease of operation.The genset's advantage is that it not only meets basic daily needs, but also reduces equipment damage and economic losses.
