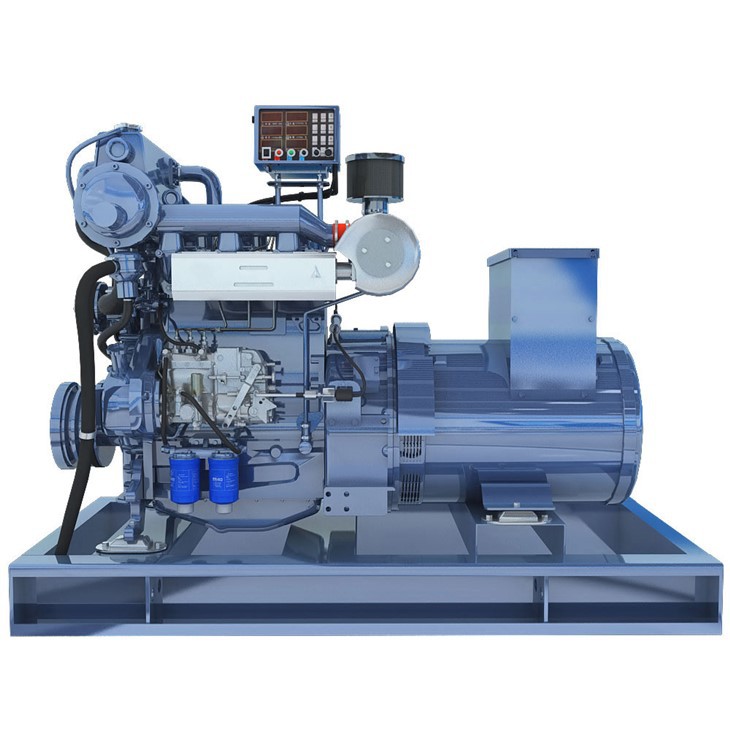

▼ The 225Kw Marine Diesel Engine is the main power source.It supplies electricity to the ship's key systems when the ship is navigating normally or berthed.Our marine engine have mature technology, a complete protection system, and high reliability.At the same time,our engines feature fast start-up speed and low fuel consumption.Also, our engines use corrosion-resistant materials to keep seawater and humid air from damaging them.
|
Model |
HD6126ZLC2 |
HD6126ZLC5 |
HD6126ZLC6 |
HD6126IZLC |
HD6126IZLC1 |
|
Type |
Water - cooled,In - line,Four - stroke,Dry cylinder liner,Direct injection |
||||
|
Rated Power/Speed (kw/r/min) |
176/1500 176/1800 |
208/2100 205/1800 |
225/2100 |
258/1800 |
288/1800 |
|
Air Intake Method |
Turbocharged Intercooled |
||||
|
Number of Cylinders |
6 |
||||
|
Bore*Stroke (mm) |
126*130 |
126*155 |
|||
|
Compression Ratio |
16:01 |
16.5:1 |
|||
|
Exhaust Temperature (°C) |
≤550 |
||||
|
Firing Order |
1-5-3-6-2-4 |
||||
|
Fuel Consumption Rate (g/kw.h) |
≤215 |
≤197 |
|||
|
Displacement (L) |
9.726 |
11.6 |
|||
|
Cooling Method |
Closed water cooling |
||||
|
Crankshaft Rotation Direction |
Counterclockwise (Viewed from the Power Output End) |
||||
|
Lubrication Method |
Pressure and Splash Combined Type |
||||
|
Starting Method |
Electric Start |
||||
|
Net Mass (kg) |
950 |
1000 |
|||
- The 225Kw Marine Diesel Engine is the "heart" of a ship's power system. It can be used in all scenarios of a ship, including navigation, operations, daily life and emergencies.
1.It ensures power supply for the ship's navigation and control systems (core power consumption).
01
2.It supports power supply for the ship's production operations and special functions (operational power consumption).
02
3.It meets the power needs of living facilities for crew members and passengers (domestic power consumption).
03
4.It provides emergency power supply to deal with unexpected situations (emergency power consumption).
04
◆ Our marine diesel power systems have a low failure rate and a long service life. With proper maintenance, they can run reliably for a long time and meet the needs of long-term offshore operations. They adopt turbocharged intercooled technology to optimize combustion efficiency and reduce fuel consumption. At the same time, they have strong environmental adaptability. They have a protection rating of IP23, which can effectively keep out dust and water and resist seawater erosion.
◆ Our 225Kw Marine Diesel Engine also have a strong ability to resist harsh environments. They use a reinforced base and shock-absorbing structure, which can effectively resist the ship's shaking and vibration, and prevent parts from loosening or being damaged.They can also be equipped with a soundproof cover. This can effectively reduce noise pollution and ensure that the crew can rest normally.
If you need a marine diesel engine,please provide the following information:
1.Power__kw/kva
2.Speed__rpm
3.Voltage__V
4.Purpose of the Diesel Generator :
Prime use / Emergency use / Standby use;
