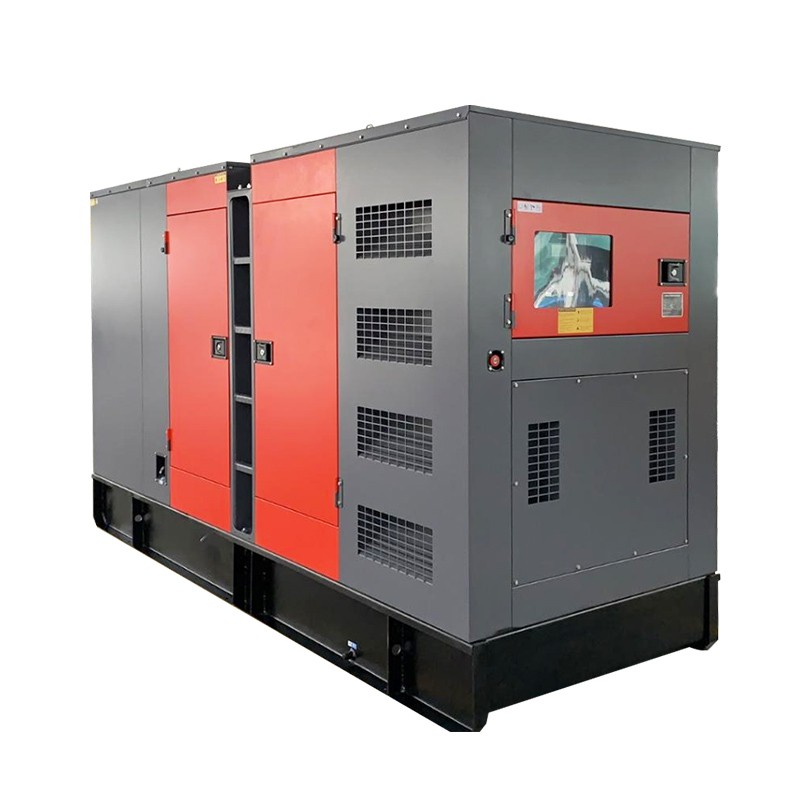

The best super quiet generator is widely used in various places without grid coverage. It is especially useful in situations with high electricity demand, such as rural areas, remote regions and some special industries.In these places and industries, it plays an irreplaceable role.These power generation sets not only have high fuel efficiency, but also can operate stably in harsh environments. They have a compact structure and are easy to maintain.This makes diesel gensets more suitable for the growing electricity demand in modern society.
|
DIESEL GENERATOR DATA |
|
|
Generator set model |
TPD250C5-2 |
|
Generator rated power |
200KW/250KVA |
|
Generator standby power |
220KW/275KVA |
|
Rated frequency |
50HZ |
|
Rated voltage |
380V (Can be adjusted) |
|
Rated speed |
1500RPM |
|
Fuel consumptionat 100% load |
52 L/h |
|
Silent type size |
3800x1400x2260MM |
|
Silent type weight |
3300 Kg |
|
ENGINE DATA |
|
|
Engine model |
MTA11-G2 |
|
Engine brand |
CUMMINS |
|
Engine rated power |
224KW/280KVA |
|
Engine standby power |
246KW/307.5KVA |
|
Engine speed |
1500RPM |
|
Bore & Stroke |
125× 147 mm |
|
Displacement |
10.8 L |
|
Compression ratio |
16.1:1 |
|
Fuel consumption at 100% load |
204 g/kW.h |
|
Type |
In line,6 cylinders,4 stroke |
|
Aspiration |
Turbochanger & Aftercooler |
|
Governor |
Electronic |
|
Cooling method |
Water cooled by radiator |
|
ALTERNATOR DATA |
|
|
Alternator model |
TP 274K |
|
Alternator brand |
TONTEK POWER |
|
Rated power |
200KW/250KVA |
|
Frequency |
50HZ |
|
Speed |
1500RPM |
|
Voltage |
380V (Can be adjusted) |
|
Power factor |
0.8 (lagging) |
|
Phase and wire |
3 phase 4 wires |
|
Excite type |
Single Bearing, Close coupled. Brushless, self-exciting,AVR |
|
Protection class |
IP23 |
|
Insulation class |
H |
Best super quiet generator is equipped with a speed control device.To ensure the stability of the generator set's output voltage and frequency, a high-performance speed control system is usually installed.Some generator sets need to operate in parallel and connect to the power grid.For these generator sets, a speed fine-tuning device is also configured.
Core Application Scenarios
|
Type of Scenario |
Core Requirements |
Typical Application Cases |
Unit Characteristics & Requirements |
|
Emergency Backup |
Quick Start,Seamless Switching |
Hospital ICU,Data Center,Communication Base Station |
Automatic Start,High Reliability |
|
Outdoor/Field Operations |
Mobile Power Supply,Grid Independence |
Building Construction,Mining Operations,Outdoor Exploration |
Portable (Small-Sized) / High-Power (Large-Sized),Harsh Environment Resistance |
|
Regular Power Supply in Remote Areas |
Long-Term Stable Operation,Economy |
Rural and Pastoral Areas,Islands,Overseas Less Developed Regions |
Low Fuel Consumption,Easy Maintenance |
|
Special Extreme Environments |
Environmental Adaptability (Temperature, Pressure, Corrosion) |
Military Use,Marine Vessels,High-Altitude / Low-Temperature Areas |
Corrosion Resistance,Low-Temperature Start,Shock Resistance |
- Best super quiet generator is an emergency power station with high power supply reliability and automatic functions, and its functions are very complete.Cummins diesel genset can realize functions such as automatic start-up, automatic loading, automatic fault alarm and automatic protection.The generator set can operate fully automatically without operators, realizing unattended management.
