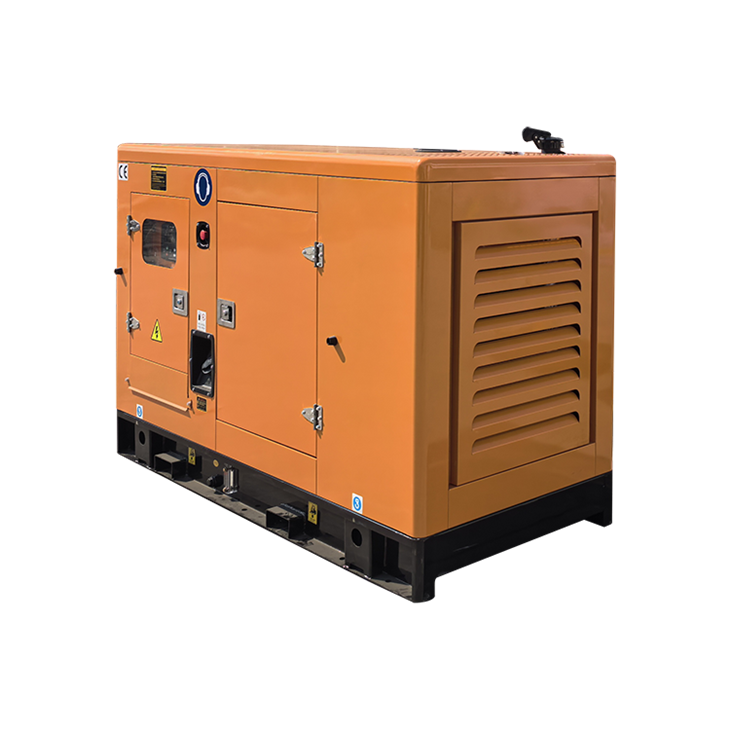

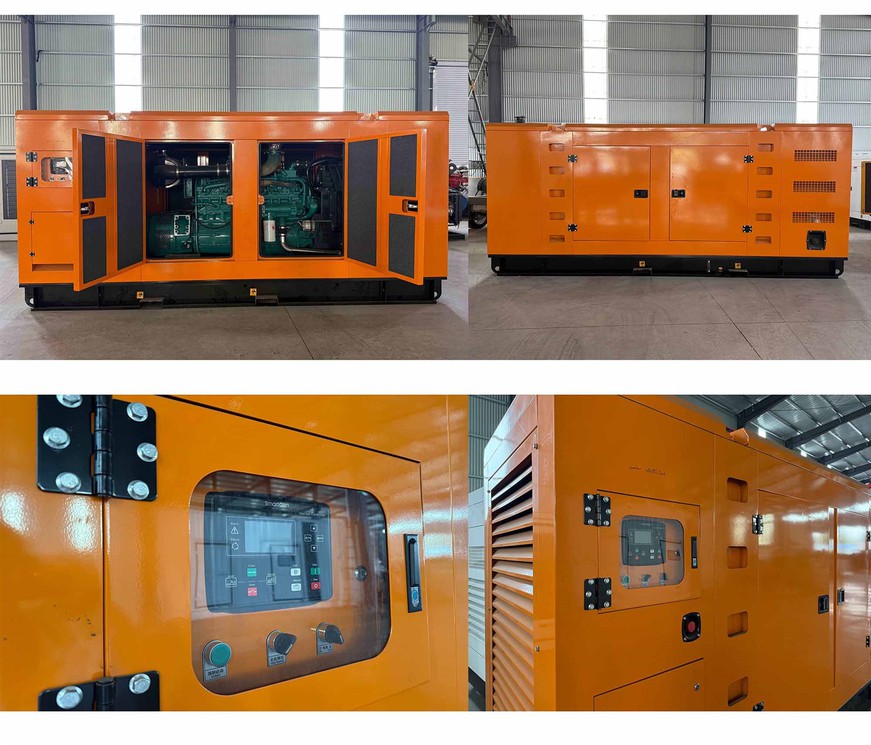

▼The silent power generators is a reliable power generation device.It is used in various industrial fields. It is known for its reliability, adopting advanced technologies with a long service life and low failure rate. It also features excellent fuel economy and power performance. Additionally, the Cummins generator set is easy to maintain.It has a global service network that provides timely after-sales service and spare parts supply.
▼ DIESEL GENERATOR DATA:
Generator setmodel : TPD160C5
Generator rated power : 128KW/160KVA
Generator standbypower : 140KW/175KVA
Rated frequency : 50HZ
Rated voltage : 415V
Rated speed : 1500RPM
Fuel consumption : 42L/h
Open type size : 2340x930x1660MM
Open type weight : 1500 Kg
▼ ENGINE DATA:
Engine model: : 6BTAA5.9-G12
Engine brand : CUMMINS
Engine rated power : 140KW
Engine standby power : 155KW
Engine speed : 1500RPM
Bore & Stroke : 102 × 120 mm
Displacement : 5.9 L
Compression ratio : 17.3:1
Fuel consumption at 100% load : 203 g/kW.h
Type : In line,6 cylinders,4 stroke
Aspiration : Turbocharged & After-cooled
Governor : Electronic
Cooling method : Water cooled by radiator
▼ ALTERNATOR DATA:
Alternator model : TP274F
Alternator brand : TONTEK
Rated power :128KW
Frequency : 50HZ
Speed : 1500RPM
Voltage : 415V
Power factor : 0.8 (lagging)
Phase and wire : 3 phase 4 wires
Excite type : Single Bearing, Close coupled. Brush-less, self-exciting,AVR
Protection class : IP23
Insulation class : H
CONTROL SYSTEM DATAOF silent power generators:
Deepsea-HGM6110N(Standard)
The control module display
• Generator voltage
• Generator frequency
• Battery voltage
• Engine speed
• Load current
• Engine run-time Hours
• Engine oil pressure (Panel Meter)
• Engine coolant temperature (Panel Meter)
Protecting Functions
• Over frequency / under frequency
• Over voltage / under voltage
• Over current
• Over speed /under speed
• Emergency stop
• Low oil pressure
• High water temperature
• Failure to start/Failure to stop
• Battery charger failure
• Comprehensive shutdown or warning on fault condition
SCOPE OF SUPPLY:
Diesel generator (Open type) 1 SET
Control system 1 SET
CHINT breaker 1 PC
Daily use base fuel tank for 8 working hours 1 PC
Muffler 1 PPC
Maintenance-free battery DC24V and connection wires 1 SET
Flange 1 PC
Bellows 1 PC
Standard maintenance tool 1 SET
OPTION:
*ABB MCCB circuit breaker *Super silent canopy
*Residential exhaust muffler *50℃ radiator
*12 hours/24 hours base fuel tank *Water heater
*Dual wall base fuel tank *Oil heater
*External fuel tank *Oil-water separator
*Droop Kit for synchronizing work *PMG excitation
*Anti Condensation Heater *Remote Control panel
*Paralleling System *ATS control cabinet
DOCUMENTATION OF GENERATOR SET:
Engine documents 1 SET
1
>>
Alternator documents 1 SET
2
>>
Control system documents 1 SET
3
>>
Generator set operation&manual 1 PC
4
>>
Generator set testing report 1 PC
5
>>
Electric drawing 1 SET
6
FACTORY ACCEPTANCE TEST (FAT)OF GENERATOR SET:
The control module display
• Generator voltage
• Generator frequency
• Battery voltage
• Engine speed
• Load current
• Engine run-time Hours
• Engine oil pressure (Panel Meter)
• Engine coolant temperature (Panel Meter)
Protecting Functions
• Over frequency / under frequency
• Over voltage / under voltage
• Over current
• Over speed /under speed
• Emergency stop
• Low oil pressure
• High water temperature
• Failure to start/Failure to stop
• Battery charger failure
• Comprehensive shutdown or warning on fault condition
The safety function test for the generator set will be carried out in Tontek Power Limited factory in China. All consumables items during the test will be provided.
WARRANTY OF Silent Power Generators:15 months or 1500 Working Hours from the shipment date, whichever comes first.
