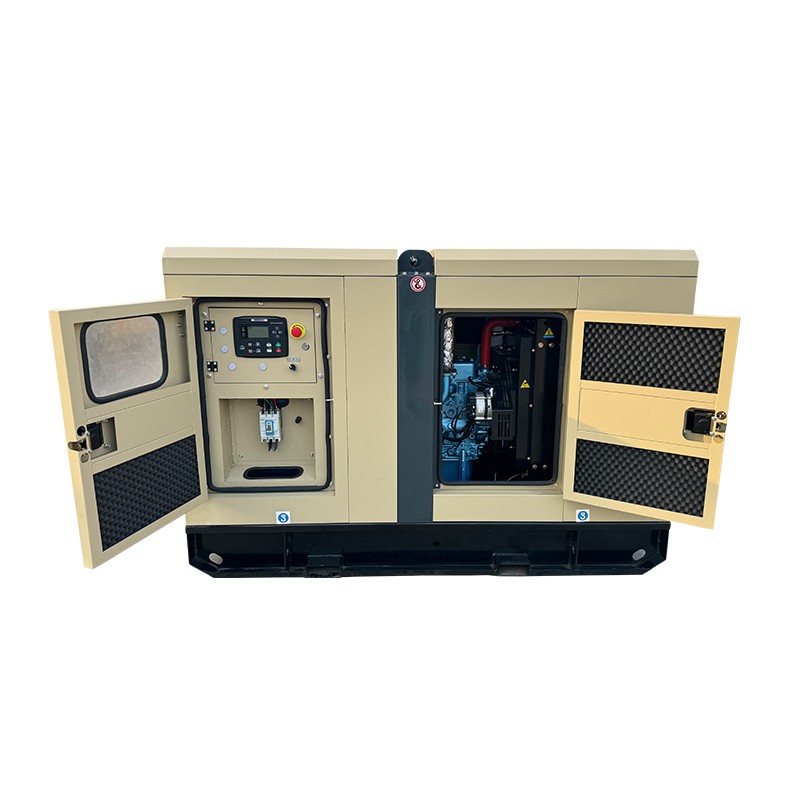

The soundproof enclosure of a silent box genset is a functional structure designed specifically for diesel engines. It can provide all-round protection for diesel engines.
The soundproof enclosure can resist damage to the diesel engine from the external environment. This helps extend the equipment's service life.
The silent box genset has stable diesel power and small voltage fluctuations. It can meet the power supply needs of oxygen pumps, production lines and refrigeration equipment.It also has a long battery life when fully fueled. The generator set's silent design won't disturb livestock or workshop work.
It won't fail at critical moments. It is a strong power guarantee in production and daily life.
|
Technical parameters of genset |
|
|
Unit model: HCG120-K |
Steady-state voltage regulation (%): ≤±1 |
|
Output power: 120KW |
Voltage fluctuation rate (%): ≤±0.5 |
|
Power factor: COSΦ=0.8 (lagging) |
Transient voltage regulation rate (%): +20~-15 |
|
Output voltage: 400V/230V |
Voltage stabilization time (s): ≤1 |
|
Output current: 216A |
Steady-state frequency adjustment rate (%): ≤±1 |
|
Rated frequency: 50Hz |
Frequency fluctuation rate (%): ≤±0.5 |
|
Rated speed: 1500rpm |
Transient frequency adjustment rate (%): +10~-7 |
|
Fuel brand: (standard) 0# light diesel (normal temperature) |
Frequency stabilization time (S): ≤3 |
|
Dimensions:3100×1100×1470(L×W×H mm) |
Fuel consumption (100% load): 209g/kW·h |
|
Unit weight: 3000kg |
Noise (LP7m): 95dB (A) |
|
Diesel engine technical parameters |
|
|
Speed: 1500rpm |
Cooling method: closed water circulation cooling |
|
Diesel engine model: 1106A-70TAG2 |
Diesel engine power: 150KW |
|
Cylinder number/lift structure: 6/L type |
Speed regulation mode: electronic speed regulation |
|
Cylinder stroke: 108×135 mm |
Intake mode: turbocharged |
|
Compression ratio: 16:1 |
Overload capacity: 110% |
|
Starting method: DC24V electric start |
|
|
Generator technical parameters |
|
|
Output factor: COSΦ=0.8 (hysteresis) |
Protection level: IP22 |
|
Motor model: SWT274E-120 |
Wiring method: three-phase four-wire, Y-type connection |
|
Rated power: 120kW |
Regulation method: AVR (Automatic Voltage Regulator) |
|
Rated voltage: 400V/230V |
Output frequency: 50Hz |
|
Insulation grade: H |
|
The soundproof enclosure of a silent box genset can adapt to various environments. It acts as a full "protective cover" for the diesel engine.The soundproof enclosure can block damage to the diesel engine from the external environment. This allows the equipment to be used for a longer time.
The outer shell of the soundproof enclosure of the silent generator set has undergone anti-corrosion treatment. For example, a protective coating is sprayed on it, or a zinc layer is plated on it. This can keep out rain and prevent dust from settling.
The soundproof of generator set can prevent dust accumulation and also stop splashing water from getting into the machine. If you use a genset by the sea, you can also choose a style specially designed to resist salt spray corrosion. It can be adapted to any environment.
The inside of the silent box genset box is equipped with fire-resistant rock wool. It also has a fire extinguisher connection port. These can reduce the risk of fire.In addition, there is an emergency stop button. If the genset breaks down unexpectedly, you can press it to stop the genset quickly.The door lock design of the box is also user-friendly. It can prevent non-professionals from making incorrect operations, thus avoiding safety problems.
