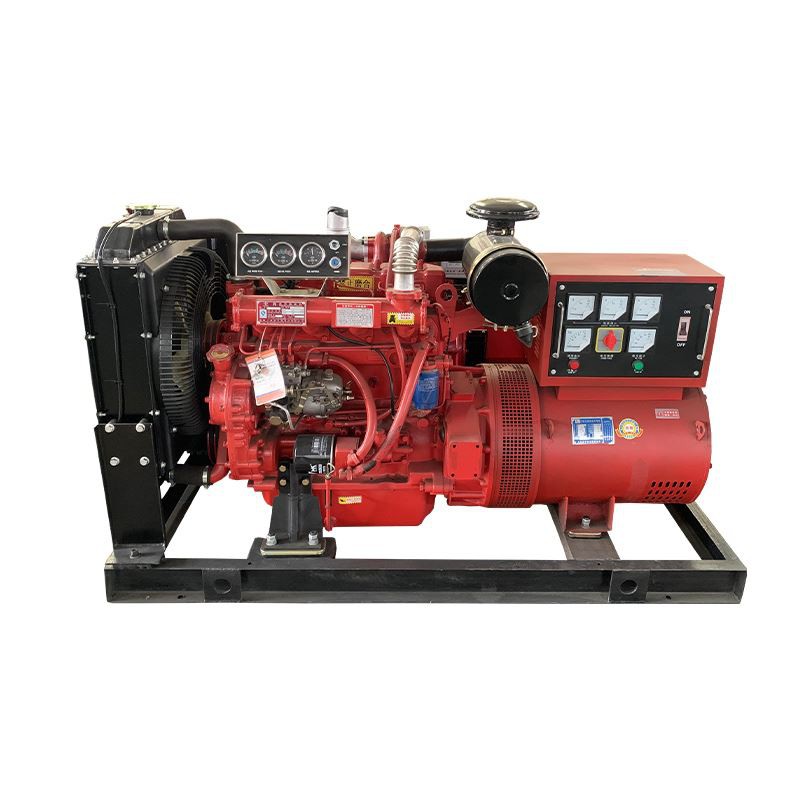

Diesel emergency generators are a set of independent power equipment with "emergency power supply" as the core goal.They are mainly composed of a prime mover, a generator, a control system, a power distribution unit and auxiliary components.
The core function of emergency generators is to start quickly and supply continuous power to critical loads. These critical loads include emergency lighting, medical equipment and data center servers.This happens when the main power source is interrupted due to emergencies. The main power source can be the power grid or the main generator, and the emergencies include faults, power outages and natural disasters.This can effectively avoid life safety risks, major economic losses or business interruptions caused by power outages.
The core control unit of diesel emergency generators is responsible for automatic monitoring, starting, operation protection and shutdown.
Its key functions include:
Main power monitoring:
The control unit of the generators detects the main power voltage/frequency in real time. When the main power is interrupted, it usually sends a start command automatically within 10-30 seconds. For some high-demand scenarios, this can be shortened to within 5 seconds.
Start control:
It drives the starter motor to start the prime mover. If the first start fails, it can automatically retry 2-3 times.
Operation protection:
It monitors parameters such as engine speed, water temperature, oil pressure, and generator output voltage/current in real time. If faults like "overtemperature, low oil pressure, overload, short circuit" occur, it shuts down immediately and gives an alarm.
Automatic switching:
It works with the "double power switch (ATS)". When the main power is restored, it automatically switches back to main power supply. The generator set shuts down after a delay and enters standby mode.
Diesel emergency generators are a strong guarantee for power safety in daily production and life.Choosing a generator set with high performance and high reliability is very important.
