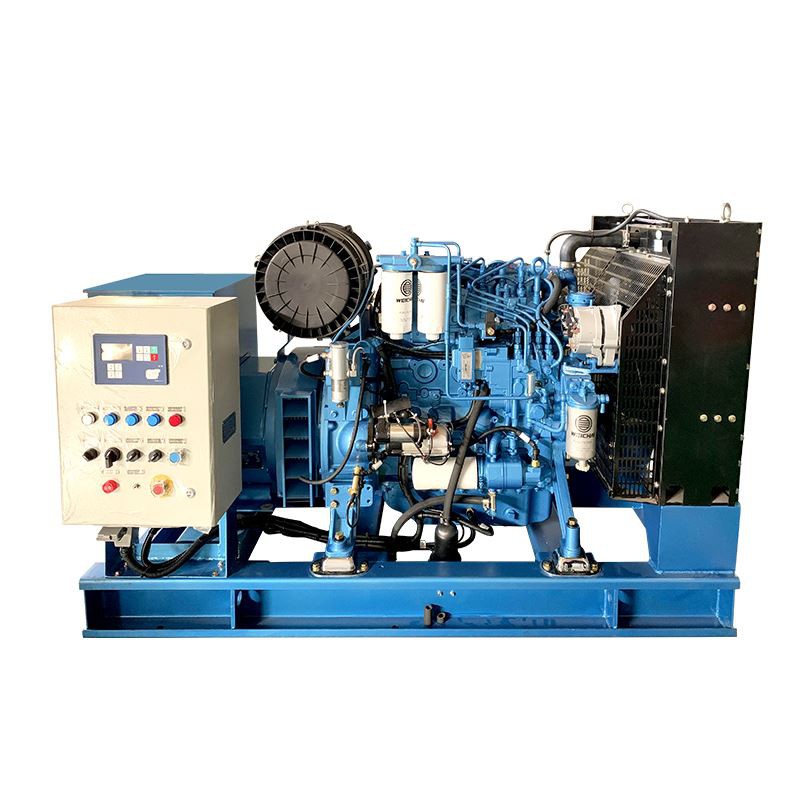

Diesel fuel systems generator set is widely used in industrial and agricultural production, national defense, science and technology, and daily life.The diesel genset is a great power supply option--no matter if you need to keep basic production going or handle unexpected power issues.The core advantage of generator set is "reliability".This reliability cannot be achieved without the support of advanced technology.Professional technology is integrated into every part, from the design of core components to the overall assembly process.This makes the equipment's stability more guaranteed.
|
1.1000kw GENSET MAIN DATA |
|||
|
Genset Model |
DL-1000GF |
Genset Size |
4950*2060*2350mm |
|
Genset power |
1000KW |
Genset weight |
10300kg |
|
Engine model |
KTA50-G3 |
Engine type |
Vertical, V 12 cylinder, 4 stroke, pressurized cooling |
|
Output power |
1227KW |
Cylinder* Stroke |
159x159(mm) |
|
Compression Ratio |
13.9:1 |
Fuel consumption |
≤202g.kw/h |
|
Speed regulation |
electric |
Rated speed |
1500r/min |
|
Start mode |
electric |
Cooling type |
Water tank circulation cooling driven by fan |
|
2.Generator Main Data |
|||
|
Model |
HJI-1000 |
Rated power |
1000KW |
|
Rated voltage |
400V |
Power factor |
0.8 |
|
Rated speed |
1500RPM |
Rated frequency |
50Hz |
|
Protection Class |
IP23 |
Insulation Grade |
H |
|
3.Control system |
Automatic Control System HGM6110; 1) Display: liquid crystal display, showing 3-phase voltage, 3-phase current, generator power, frequency & speed. 2) Indicators：power supply indicator, power on indicator and various fault alarm indicators 3) State selection: automatic/manual/test free transition; 4) Manual: manual start, manual close, open and stop; 5) Automatic: automatic main supply inspection, auto start, auto stop; 6) Automatic protection: protections for water high temperature, low oil pressure, over current, over load and others. |
||
- From industrial and agricultural production to national defense security, and from scientific and technological research to daily life, Diesel fuel systems generator set plays an irreplaceable role in many fields with their flexible power supply capacity.Their specific applications can be divided into the following categories:
In industrial production, the stability of grid power supply is directly related to the production progress.When a sudden power outage occurs, generator sets can start quickly as core emergency power supply equipment.They continuously supply power to production lines and key equipment, effectively avoiding production delays caused by power outages.The power system ensures the continuity and efficiency of industrial production.
Diesel generators supply power to equipment like irrigation pumps, ensuring farmland irrigation is not affected by power fluctuations and helping crops grow.They can drive agricultural product processing machinery such as rice mills and grinders.This reduces labor costs and improves rural production efficiency.
In daily life scenarios, small portable generator sets have become practical tools.When a family faces a sudden power outage, the generator set can supply power to refrigerators, lighting fixtures and small household appliances.This eases the inconvenience in life.In scenarios without fixed power supply, such as outdoor camping and field construction, it can also supply power to mobile phones, projectors and small tools.
Diesel fuel systems generator set meets different power needs.
