Description

Technical Parameters

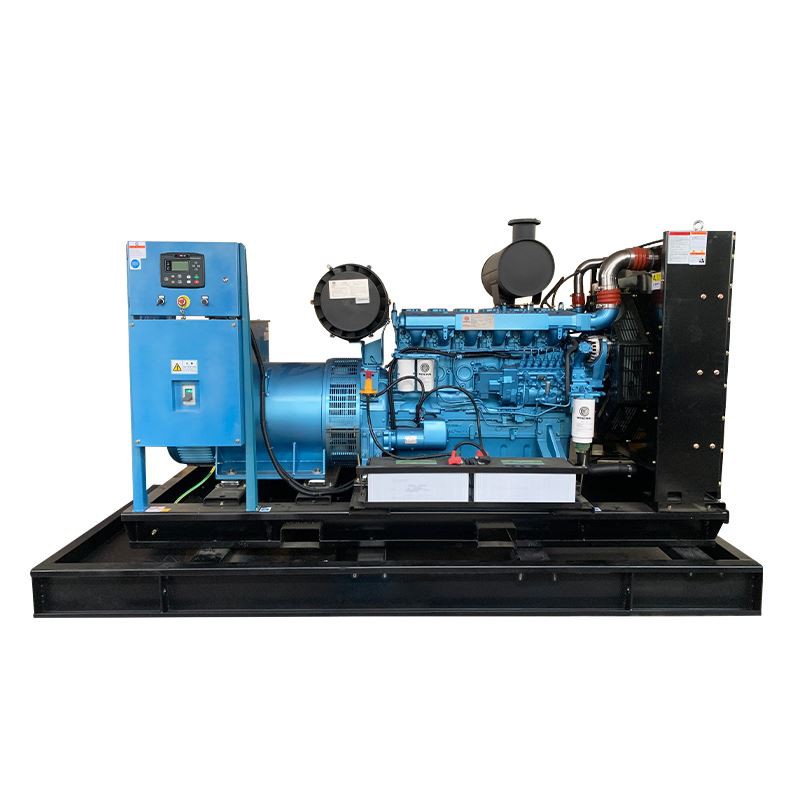

Our Cummins Diesel Generator Set can meet your requirements for emergency support, cost control and environmental adaptability.It can start quickly.This allows it to deal with emergency situations.Cummins diesel genset can supply power continuously and has a long running time.The "automatic transfer type" can automatically detect and start the unit.No manual operation is needed throughout the process.Our generators can solve the "power outage anxiety".

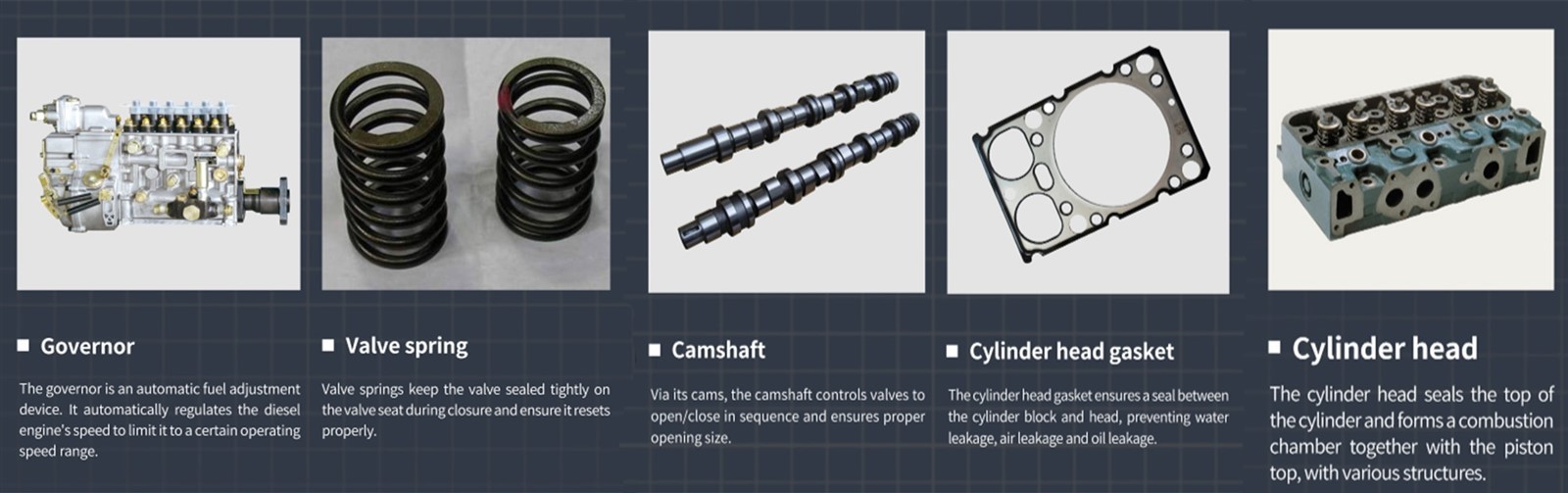

Cummins Diesel Generator Set details

The core value of generator sets lies in addressing the issues of "electricity accessibility" and "electricity reliability":

·When the power grid is "inaccessible" (such as in remote areas, wild fields, or mobile scenarios), they serve as "primary power sources" to ensure basic electricity supply.

·When the power grid is "unreliable" (due to power outages or rationing), they act as "backup power sources" to avoid losses.

·When "flexible power supply" is needed (for emergency situations or temporary events), they function as "mobile power sources" to provide quick responses.

From ensuring the continuity of industrial production to safeguarding the lives of hospital patients, and supporting emergency rescue after disasters, generator sets have become an indispensable "important supplement" and "safety backup" in the power system of modern society.

DIESEL GENERATOR DATA:

Generator set model	: TPD100C5-2
Generator rated power	: 80KW/100KVA
Generator standby power	: 88KW/110KVA
Rated frequency	: 50HZ
Rated voltage	: 380/220V (Can be adjusted)
Rated speed	: 1500RPM
Fuel consumption	: 23.5L/h
Open type size	: 2085x785x1550 MM
Silent type size	: 2850x1100x1700 MM
Open type weight	: 1100 Kg
Silent type weight	: 1650 Kg

Environmental Adaptability and Protection Design

1.Durable and Suitable for Harsh Environments:

The outer shell of the Cummins Diesel Generator Set has anti-rust and anti-corrosion treatment.It can resist moisture and salt spray, so it is suitable for coastal scenarios.The genset can also resist dust, so it is suitable for construction site scenarios.Some outdoor models are also equipped with a "rain cover".When it rains, you don't need to build a temporary shed.You can use it directly outdoors without worrying about water ingress.

2.Not Afraid of Cold Weather:

For cold northern regions, you can choose to install a "low-temperature start kit".The kit includes an engine preheater and an antifreeze filling port.Even when the temperature is as low as -20℃, it can start at one time.There will be no problem of "being frozen and unable to start in winter".It is suitable for cold regions such as Northeast China and Inner Mongolia.

3.Compliant with Regulations and Environmental Protection：

By upgrading technologies such as EGR exhaust gas recirculation and particulate traps.The exhaust emissions of Cummins Diesel Generator Set can meet National III and National IV standards.Some models can meet more stringent environmental protection requirements.When it used in places with emission requirements, such as residential areas and scenic spots.It will not be punished for "exceeding the standard".
