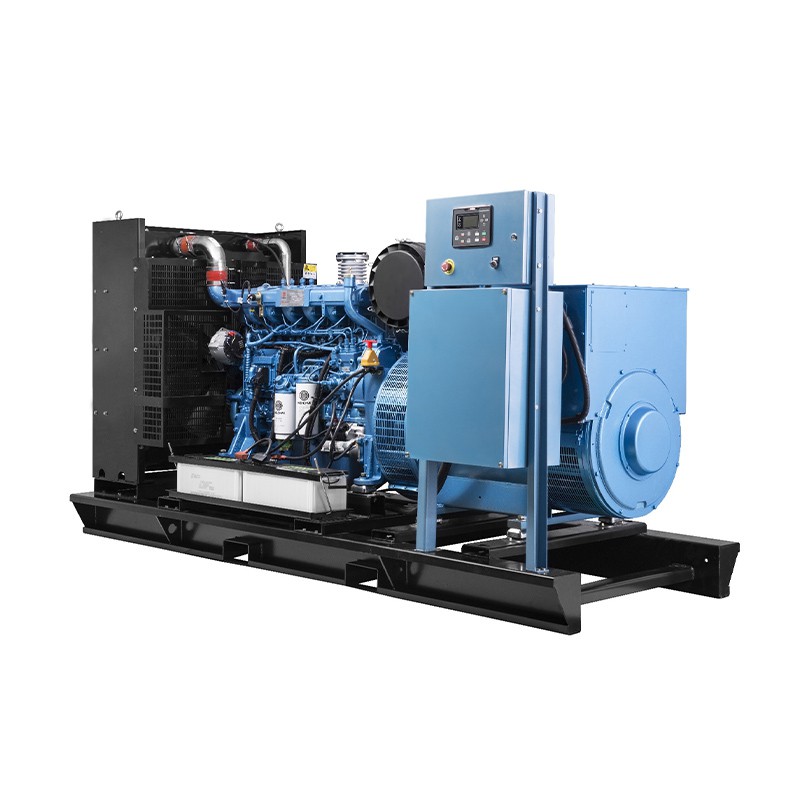

Genset diesel generator set use a compression ignition method (no spark plug needed). This makes their power output more stable. They can handle short-term overload operation.The generator sets have special designs. For example, they have rainproof and dustproof enclosures, low-temperature preheating systems, and upgraded air filters.With these designs of gensets, they can operate stably in dusty environments like deserts, extremely cold areas, and outdoor rainy seasons.
|
Gen-set specifications |
|
|
Model |
WPG275K8 |
|
Standby Rating kVA/kWe |
275/220 |
|
Prime Rating kVA/kWe |
250/200 |
|
Voltage V |
400 |
|
Frequency Hz |
60 |
|
Power Factor |
0.8(lagging) |
|
No. of Phases |
3 |
|
Fuel consumption@25%/ 50% / 75%(L/h)75%(L/h) |
14.32/ 25.11 / 37.25 |
|
Fuel consumption@100% / 110%(L/h) |
51.1 / 56.24 |
|
Sound@1m(dB·(A)) |
Open ≤ 105; Silence ≤ 85 |
|
Ambient temp(℃) |
-5～40 |
|
Gen-set regulation class |
ISO8528-5 G2 |
|
Steady-state voltage deviation |
≤±2.5% |
|
Transient voltage deviation (100%sudden power decrease/increase) |
≤+25% ;≤-20% |
|
Steady-state frequency band |
≤1.5% |
|
Gen-set regulation class |
≤+12%;≤-10% |
|
Standard Features Of Genset Diesel Generator Set |
||
|
♦ Electronic governor |
♦DC24 Electric starter |
♦6120NC |
|
♦ Closed water-cooled |
♦ IP23 |
♦H type insulation |
|
♦ Air filter |
♦ Muffler |
♦ Circuit Breaker |
|
♦Starting batteries (maintenance-Free) |
♦ with connective wires |
♦ Radiator |
|
♦Oil Drain Valve |
♦Forklift Groove |
♦Shock Absorber |
|
♦ Color |
CUMMINS green (B, F)/beige canopy and gray chassis (L) |
|
|
♦ Packaging |
Wound film packing |
|
|
Options |
||
|
◇Voltage380V/415V |
◇Voltage 440V/480V |
◇Single Voltage 220V/230V |
|
◇Automatic Transfer Switch |
◇Automatic Parallel system |
◇PMG |
|
◇Engine Heater (water) |
◇Engine Heater (air inlet) |
◇Alternator heater |
|
◇External fuel tank(1000L/1500L) |
||

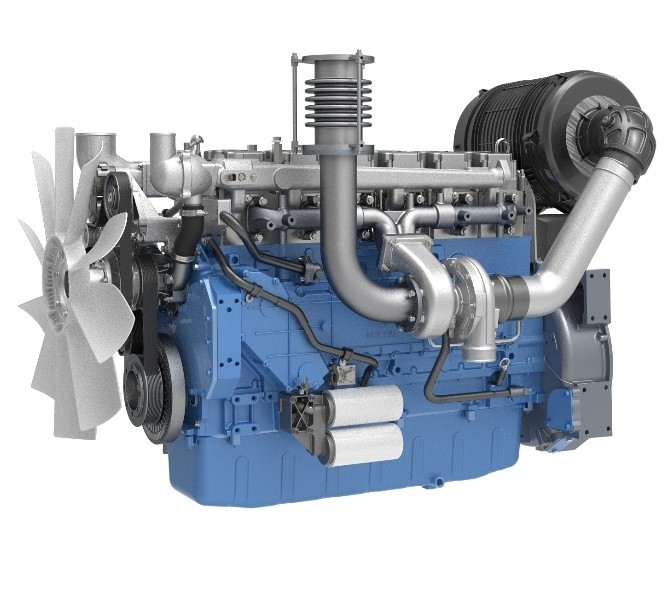

Engine Of Genset Diesel Generator Set
■ CUMMINS 6LTAA8.9-G3 series, 6 cylinder, in-line 4 stroke, radiator cooled engine
■ Well-designed air handling system with
■ Dry type, Replaceable paper element air cleaner with restriction indicator
■ Air to air after cooling
■ Optimized turbocharger for increased altitude capabilities
■ High efficiency, large heat area intercooler, reduce the air temperature after the intercooler
■ Fuel system with A1 class electronic governing
■ Radiator system,
■ Electrical starter motor with soft start engagement feature
■ Intelligent fuel injection technology to start fast guarantee
■ Battery charging alternator
Alternator Of Generator Sets
■ Brushless type, Screen protected, Revolving field, Self-excited alternator conforming to IEC 60034-1
■ Best in class efficiency
■ Steel casing
■ Compact design with sealed bearings for longer life and lesser maintenance
■ IP23 standard protection level
■ Impregnation on all wound components for better mechanical strength

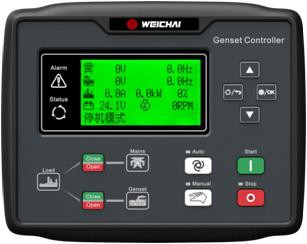

Control Module Specifications
The 6120NC is an Auto Mains Failure Control Module
■ Back-lit LCD display
■ 3 Phase generator and 3 Phase Mains monitoring
■ Monitoring speed, frequency, voltage, current, oil pressure, coolant temperature and fuel level
■ Display warning, shutdown, and engine status information
■ Hours counter provides accurate information for monitoring and maintenance
|
Engine specifications |
|
|
Make |
CUMMINS |
|
Mode |
6LTAA8.9-G3 |
|
Rated Speed r/min |
1800 |
|
Prime Power kW |
240 |
|
Cooling |
Liquid cooled |
|
Governor |
Electronic governor |
|
Aspiration |
TA |
|
No. of cylinders |
6, in-line |
|
Bore (mm) x Stroke (mm) |
114*145 |
|
Displacement (L) |
8.9 |
|
Starting system |
24VDC |
|
Total lubrication system capacity (L) |
27.6 |
|
Total coolant capacity (L) |
35 |
|
Cooling fan airflow(m³/min) |
403 |
|
Exhaust Temperature (°C) |
≤600 |
|
Combustion air flow @ PRP (m³/min) |
16 |
|
Exhaust back pressure (mBar) |
≤60 |
|
Radiator design temperature(℃) |
45 |
|
Alternator specifications |
||||||||
|
Make |
Shuangling/hengjiu |
|||||||
|
Alternator Frame |
250KW |
|||||||
|
Exciter Type |
Self-excitation |
|||||||
|
Enclosure |
IP23 |
|||||||
|
Voltage regulation |
≤±1% |
|||||||
|
Class of Insulation |
H |
|||||||
|
Winding Pitch |
2/3 |
|||||||
|
Rotor |
Single bearing |
|||||||
|

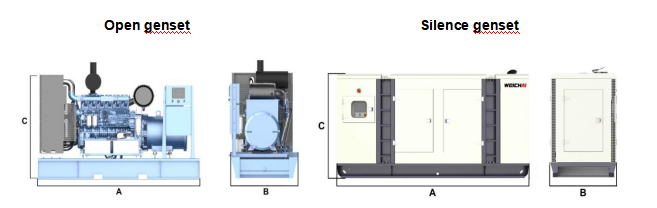

Typical Genset Dimensions |
||||||||
|
|
Prime Rating (kVA) |
Length A(mm) |
Width B(mm) |
Height C(mm) |
Wet Weight* (kg) |
Standard Fuel tank Capacity (L) |
||
|
WPG275K8 |
250 |
2999 |
1170 |
1780 |
2350 |
- |
||
|
WPG275K8 |
250 |
2999 |
1170 |
1920 |
2510 |
420 |
||
|
WPG275K8 |
250 |
3900 |
1350 |
2050 |
3220 |
460 |
||
*: Include coolant and oil.
