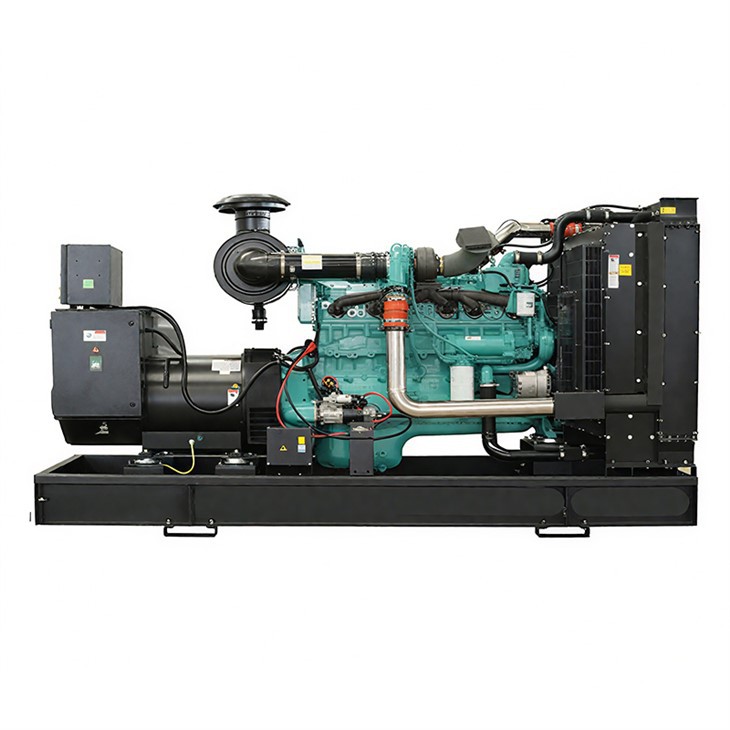

The genset generator is the core equipment that turns fuel into power. It's a core device that uses diesel to "burn on its own" to produce power.The power system doesn't need a spark plug to ignite, but it can output strong power. It has long been used in many aspects of our travel, production and daily life.

Generator Set Technical Parameters
Set Model：HCG330-K	Steady-state voltage regulation (%)：≤±1
Output power：330KW	Voltage fluctuation rate(%)：≤±0.5
Power factor：COSΦ=0.8(Lagging)	Transient voltage regulation(%)：＋20～－15
Output voltage：400V/230V	Voltage stabilization time(s)：≤1
Output current：594A	Steady-state frequency regulation(%)：≤±1
Rated frequency：60Hz	Frequency fluctuation rate(%)：≤±0.5
Rated speed：1800rpm	Transient frequency regulation(%)：＋10～－7
Fuel grade：(Standard)0#Light diesel oil (normal temperature)	Frequency stabilization time(S)：≤3
Overall dimension：3200×1200×1500(L×W×H mm)	Fuel consumption (100% load)：209g/kW·h
Set weight：4200kg	Noise(LP7m)：95dB(A)

Diesel Engine Technical Parameters
Speed Regulation Method: Electronic Speed Regulation	Cooling Method: Closed Water Circulation Cooling
Diesel Engine Model：6ZTAA13-G2	Diesel Engine Power：390kw
Bore and Stroke：130×163 mm	Air Intake Method：Turbocharging
Compression Ratio：17：1	Overload Capacity：110%
Starting Method：DC24VElectric Starting	Speed：1800rpm

Generator Technical Parameters
Generator Model：SWT434F-350	Protection Class：IP23
Wiring Method:	Three-Phase Four-Wire, Y-Connection
Rated Power：350kW	Regulation Method：AVR(Automatic Voltage Regulator)
Rated Voltage：400V/230V	Output Frequency：60Hz
Insulation Class：H	Output Factor：COSΦ=0.8(Lagging)

The cooling method of the generators we mainly sell is water cooling. Water-cooled genset generator is more suitable for long-time, high-load power generation than ordinary air-cooled generators.It is commonly used in scenarios that require stable power supply, such as factory backup power, ship power supply, and outdoor engineering operations.

Core Advantages of Water Cooling System

1.More stable power generation and ability to work for a long time

Genset generator produces a lot of heat when working. The water cooling system can control the temperature accurately. It won't make the engine get hot and cold suddenly.In this way, the voltage and frequency fluctuations of the generator's output are small. When supplying power to precision equipment (such as factory machine tools and ship navigators), it won't damage the equipment due to unstable voltage.

2.Lower noise, suitable for scenarios requiring quiet environment

The water cooling system doesn't need to rely on a large fan to blow hard like the air cooling system. Its working noise is 10-15 decibels lower than that of air-cooled generators.For example, in construction sites near residential areas or emergency power supply in scenic spots that need a quiet environment, water-cooled generators won't make too much noise to the surrounding people or animals.

3.Strong ability to adapt to the environment, not afraid of bad weather

The water cooling system of genset generator can reduce the impact of the external environment on the engine.For example, in hot weather, the coolant cools down without being affected by direct sunlight. In dusty environments, there's no need to worry about dust blocking the heat dissipation port like air-cooled systems.The water cooling system of genset is suitable for scenarios such as outdoor engineering and mining operations.

Product Details

Genset Generator

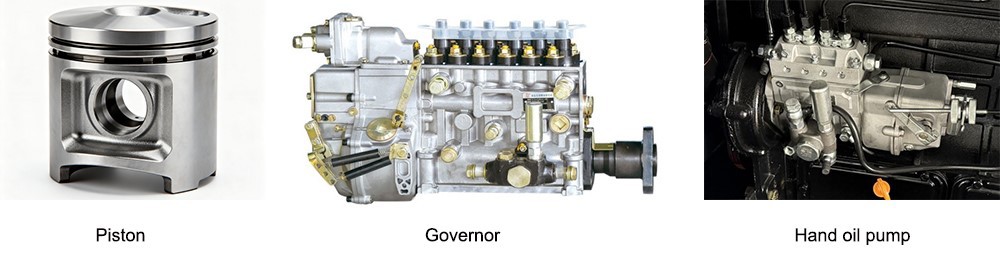

Piston:Choose pistons of different structures and materials based on the diesel engine's cylinder bore, stroke and air intake method.

Governor:The governor is an automatic fuel adjustment device. It automatically regulates the diesel engine's speed to limit it to a certain operating speed range.

Hand oil pump:Fuel transfer pump/hand pump: Supplies low-pressure fuel to the fuel system, connecting the fuel tank and high-pressure pump.

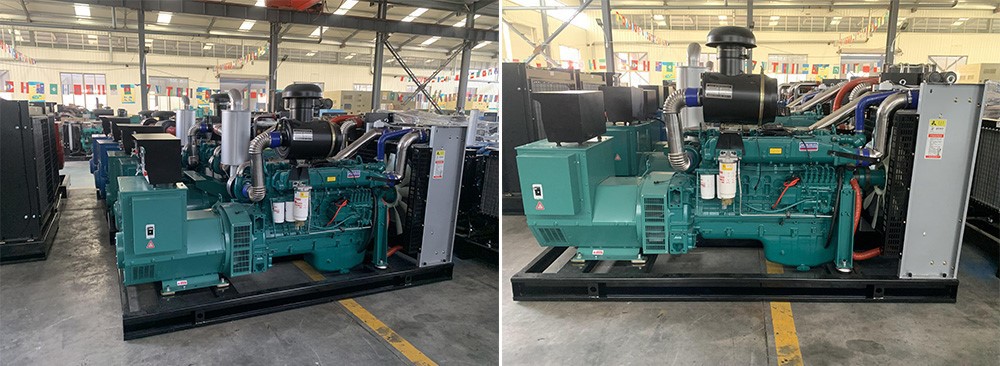

Project Case

Genset Generator2
