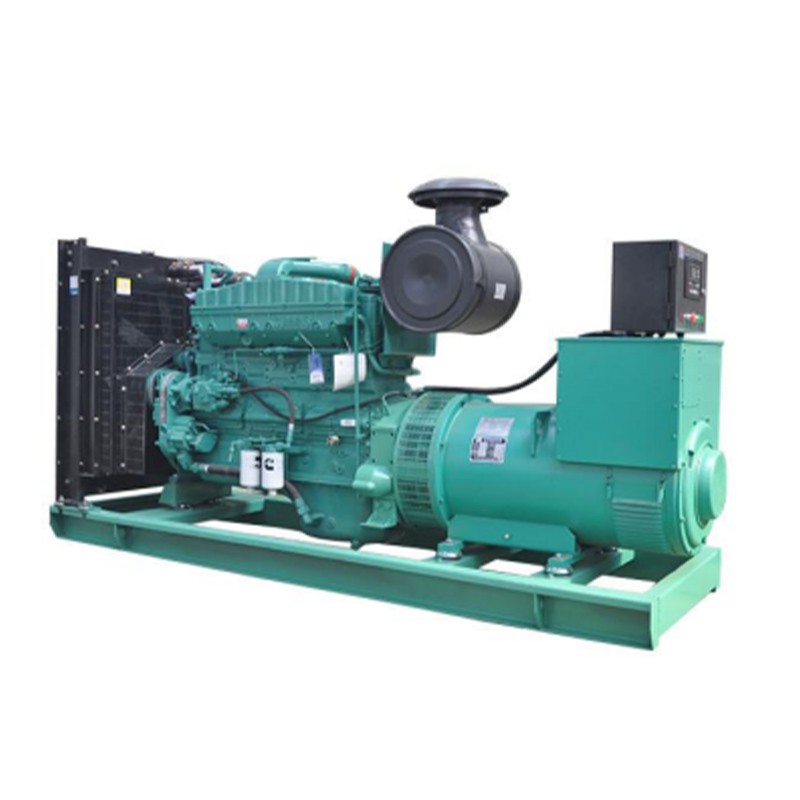

Our 250KW Cummins Generator Set has a wide range of uses. They are suitable for industrial power, ships, construction machinery, vehicles, agricultural equipment and more.They have the feature of quick start. They can supply power quickly when power is insufficient to ensure key operations are not interrupted.
Our generator sets have 50HZ and 60HZ options. There is also a power range from 12kw to 2500kw for you to choose from.Cummins brand generator sets all have high performance. We believe they will be your ideal choice.
BRIEF INFORMATION
DESCRIPTION
● GENERATOR(Cummins NTA855-G1A )
● Radiator for water tank, cooling fan driven by belt with cover
Guide, workable for ambient temperature 40℃.
● 24V re-chargeable generator
● Generator: single bearing, IP22 protection, H insulation
● A set of shock absorber and silencer
● Dry air filter, dual fuel filter, engine oil filter, coolant filter
● Circuit breaker for power generation output
● Control panel：HGM6120
● 12V battery and connector
● One usage profile
|
Main Data for Generator |
|
|
Genset type |
250GF |
|
Output power |
250KW |
|
Rated voltage |
400/230V |
|
Rated current |
451A |
|
Rated frequency |
50Hz |
|
Power factor |
0.8(LAG) |
|
Start mode |
24V DC starting |
|
Voltage regulation |
AVR |
|
Genset size |
3300*980*1900mm(for reference only) |
|
Genset weight |
2500kg |
|
Fuel grade |
(standard)0# light diesel |
|
Structure |
the unit adopts integral structure and the base is made of high strength steel. The cooling fan and battering charger are all equipped with protective cover. |
Control system of 250KW Cummins Generator Set
1) Display： liquid crystal display,showing 3-phase voltage, 3-phase current, generator power, frequency & speed.
1
>>
2) Indicators： power supply indicator,power on indicator and various fault alarm indicators
2
>>
3) State selection：automatic/manual/test free transition;
3
>>
4) Manual： manual start, manual close,open and stop;
4
>>
5) Automatic： automatic main supply inspection, auto start,auto stop;
5
>>
6) Automatic protection： protections for water high temperature, low oil pressure, over current, over load and others
6
Environmental conditions for use
Altitude : ≤1000m
Ambient temperature : -15℃～40℃
Relative humidity : ≤90%
Production standard : GB/T2820,GB/T12786-1991
Steady-state voltage regulation rate : ≤+1%
Steady-state frequency adjustment rate : ≤+1%
Steady-state voltage fluctuation rate : ≤+0.5%
Steady-state frequency fluctuation rate : ≤+0.5%
Transient voltage regulation rate : -15%～+20%
Transient frequency adjustment rate : -15%～+20%
Voltage stability time : ≤1S
Frequency stability time : ≤3S
Main data for diesel engine
Diesel engine maker : CHONGQING Cummins
Diesel engine model : NTA855-G1A
Output power : 291KW
Engine speed : 1500 rpm
Engine type : inline 6 cylinder, 4 stroke, pressurized watering cooling, direct injection
Cooling system: Cooling System: Radiator of water tank with ring temperature
40 °C, cooling fan driven by belt
Speed control system: electric speed control
Starting model : 24V DC starting
Filtration system: dry air filter, fuel filter, coolant filter
Cylinder*stroke: 140*152mm
Fuel consumption: ≤198g/kw.h
250KW Cummins Generator Set has high technical performance.It can adapt to complex environments such as sand, salt, seawater and chemical corrosion.
Cummins Genset can equip key components like superchargers, fuel systems and control systems internally. This ensures the consistency and performance of the products.It equipped with high-power starters and intake electric preheating devices. So, their cold-start performance is good, and they are suitable for extreme environments.
In terms of after-sales service, Cummins has built a high-density service system.
This system covers more than 190 countries and regions around the world, with over 600 distribution agencies and more than 6,500 dealer outlets.Whether it is an industrial city in North America, a commercial center in Europe, a remote mining area in Southeast Asia or an oil field site in Africa, it can achieve close coverage of service outlets.
