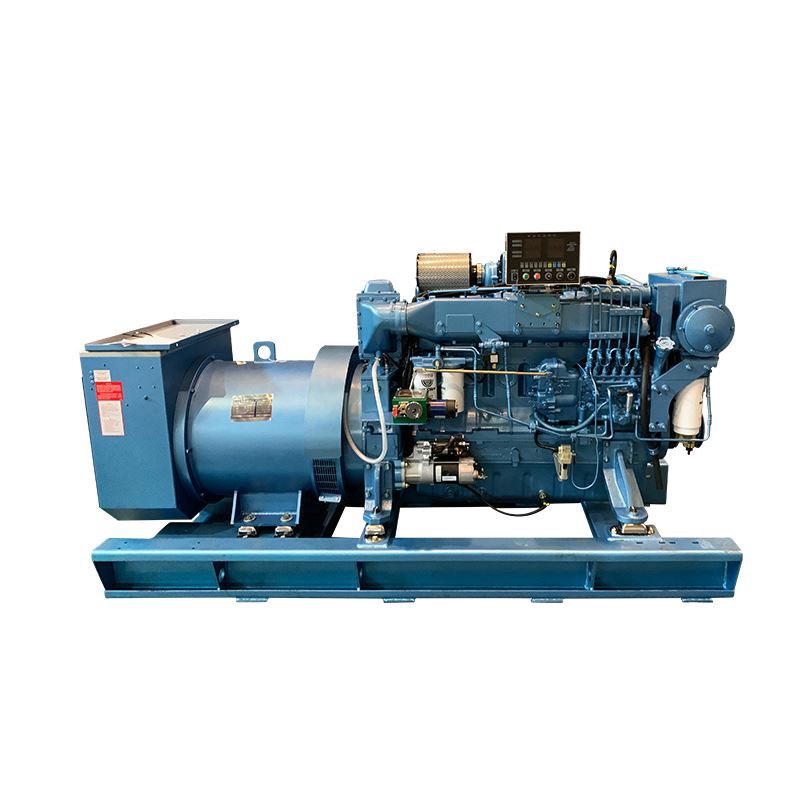

The Diesel Backup Generator Set has strong power and provides stable electricity supply.It uses a diesel engine as its power source. The generator set has high torque and stable power output.It can supply electricity continuously for a long time, from several hours to several days.Besides, its voltage and frequency fluctuations are small.It can work with equipment that is sensitive to power quality, such as precision instruments and data center servers.This prevents equipment breakdowns caused by unstable voltage.
DIESEL GENERATOR DATA:
|
Generator setmodel |
TPD63CS5 |
|
Generator rated power |
50KW/63KVA |
|
Generator standbypower |
55KW/69KVA |
|
Rated frequency |
50HZ |
|
Rated voltage |
380V |
|
Rated speed |
1500RPM |
|
Fuel consumption |
13L/h |
|
Open type size |
2500×1000×1580MM |
|
Open type weight |
1480 Kg |
ENGINE DATA:
|
Engine model |
4BTA3.9-G2 |
|
Engine brand |
CUMMINS |
|
Engine rated power |
58KW/72.5KVA |
|
Engine standby power |
64KW/80KVA |
|
Engine speed |
1500RPM |
|
Bore & Stroke |
102 × 120 mm |
|
Displacement |
3.9 L |
|
Compression ratio |
17.3：1 |
|
Fuel consumption at 100% load |
213 g/kW.h |
|
Type |
In line,4 cylinders,4 stroke |
|
Aspiration |
Turbocharger&After cooler |
|
Governor |
Electronic |
|
Cooling method |
Water cooled by radiator |
ALTERNATOR DATA:
|
Alternator model |
TPI224FS |
|
Alternator brand |
TONTEK |
|
Rated power |
54KW |
|
Frequency |
50HZ |
|
Speed |
1500RPM |
|
Voltage |
380V |
|
Power factor |
0.8 (lagging) |
|
Phase and wire |
3 phase 4 wires |
|
Excite type |
Single Bearing, Close coupled. Brushless, self-exciting,AVR |
|
Protection class |
IP23 |
|
Insulation class |
H |
The Diesel Backup Generator Set comes with multiple standard safety protection systems. These include:
1.Overload protection:
When the electrical load exceeds the generator's rated power, it will automatically reduce the load or shut down. This prevents damage to the engine.
2.Low oil pressure protection:
When the engine oil is insufficient, it will automatically sound an alarm and shut down. This stops the engine from having cylinder scuffing.
3.High water temperature protection:
When the coolant temperature is too high, it triggers a shutdown. This keeps the engine from overheating.
4.Short circuit protection:
When there is a short circuit in the circuit, it quickly cuts off the power supply. This protects the equipment and ensures personnel safety.
Suitable Scenarios for Diesel Backup Generator Set
|
Application Fields |
Core Usage Scenarios |
Equipment Value |
|
Industrial Manufacturing |
Production lines, CNC machine tools, workshop lighting, air compressors |
Prevent production halts, order delays, and equipment damage caused by power outages |
|
Commercial Services |
Lighting/air conditioning/elevators in shopping malls, hotels, office buildings, supermarkets; POS systems |
Ensure customer experience, avoid business interruptions, and prevent spoilage of cold-chain food |
|
Medical and Health Care |
ICU wards, operating rooms, emergency equipment, refrigerated medicine warehouses, ventilators in hospitals |
Protect life safety at critical moments and prevent medical accidents |
|
Data Communication |
Data center servers, base stations, computer room cooling systems |
Prevent data loss and network outages, and ensure stable communication |
|
Residential Buildings |
Elevators, emergency lighting, secondary water supply pumps in high-rise residential communities |
Avoid inconvenience to residents' lives and ensure the operation of basic living facilities |
|
Public Facilities |
Transportation hubs (airports, railway stations), sewage treatment plants, municipal lighting |
Maintain public order and prevent the paralysis of public services |
