Emergency Power Supply: Ensuring "Uninterrupted Power" in Critical Scenarios
This is one of the core advantages of our industrial generator sets, especially for scenarios with extremely high requirements for power continuity.
Response to Power Grid Failures
For examplel,when the municipal power grid is interrupted due to natural disasters (typhoons, earthquakes, heavy snow), equipment failures, line maintenance, etc., our industrial generator sets can start up in a short time (usually a few seconds to tens of seconds) to supply power to critical loads and avoid losses caused by power outages.We take customers 'requirements as priority.
Ease of Installation
Small diesel generator sets (such as gasoline and portable diesel generator) require no fixed installation and can be directly transported to the place of use. Although large units (such as diesel and gas generator sets) need supporting machine rooms and exhaust pipes, their installation cycle can be shortened through modular design, making them particularly suitable for temporary projects or emergency needs.
|
Diesel Generator data |
|||
|
Prime Power |
200kw |
Power factor |
COSΦ=0.8 |
|
Output voltage |
400v /230v |
Dimension |
2890*1220*1750mm |
|
Rated requency |
50hz |
Speed |
1500rpm |
|
weight |
1600kgs |
||
|
Diesel engine data |
|||
|
Brand |
Cummins |
Model |
NTA855-DM |
|
Power |
120kw |
Cylinder |
6 |
|
Bore*stroke |
140x152mm |
||
|
Generator data |
|||
|
Brand |
MODO |
Phase |
3 |
|
Rated power |
200kw |
Protection |
IP23 |
|
Insulation |
F |
Excitation method |
Brushless excitation |

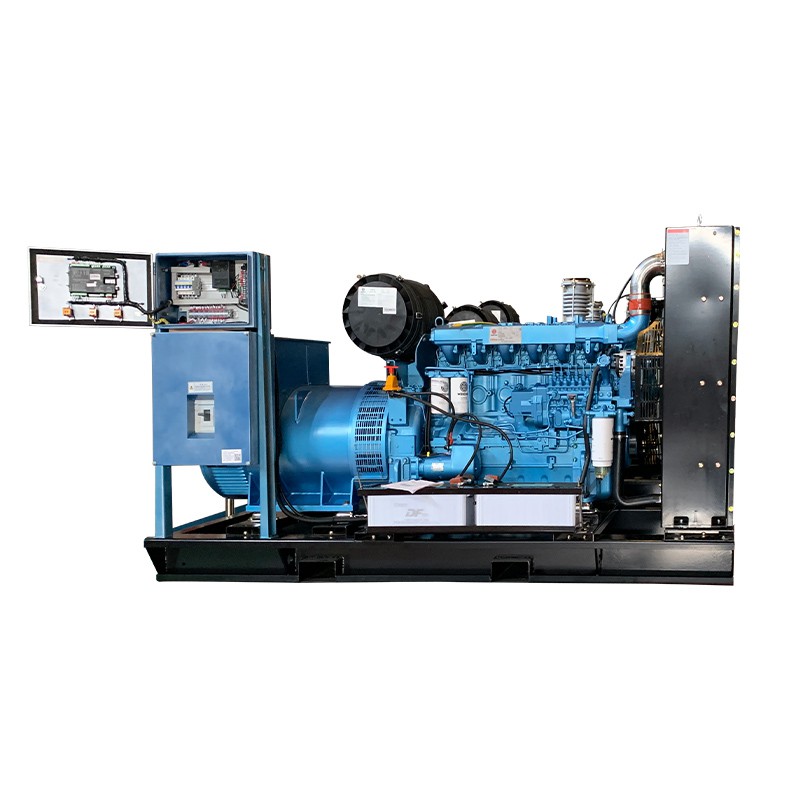

Standard configuration of Industrial generator
Ø Direct injection internal combustion engine (diesel);
Ø AC synchronous generator (single bearing);
Suitable for environments ranging from 40 ℃ to 50 ℃, including radiator tanks, belt driven cooling fans, and fan safety shields;
Ø Power generation output air switch, standard control screen;
Ø Unit steel shared base (including: unit vibration damping rubber pad);
Dry air filter, fuel filter, lubricating oil filter, starter motor, and equipped with a self charging generator;
Ø Starting battery and battery starting connection cable;
Ø Industrial silencers and standard components for connections
Random materials: original technical documents of diesel engines and generators, generator set manuals, test reports, etc.
Warranty period of Industrial generator:
1.12 months or accumulated 1500 hours of operation after the commissioning and acceptance of the domestic unit; Whichever expires first.
2.Due to product quality issues, we offer free repairs or replacement parts and lifetime paid services!
3.(Vulnerable parts, commonly used parts, human damage, neglect of maintenance, etc. are not covered by the warranty)
4.If there is a factory adjustment, the original factory warranty regulations shall apply!
5.Execution standard: Quality Management System ISO9001
6.Industry standard GB/T2820.1997
- Personally, the advantage of generator sets lies not in the single function of "power generation", but in their features such as "emergency support, independent regulation, scenario adaptability and stable reliability". They have become an indispensable "supplement and backup" in the modern power generator system, which not only ensures power safety in key scenarios, but also provides important support for energy diversification, energy conservation and consumption reduction.
